Body Equipment - Repair -- M3 Convertible
>>
Front Bumper
>>
51 11 158 Replacing baseplate for license plate
51 11 158 Replacing baseplate for license plate
Release screws or rivets (1).
Remove license plate baseplate (2).

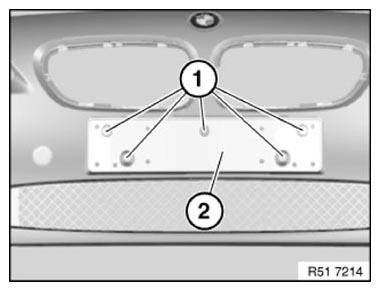

Fig 1: Identifying Screws And Baseplate
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
