51 37 171 Replacing rear left or right side window

WARNING: Power window unit has no anti-trapping mechanism.

Necessary preliminary tasks:

Release screws (1).

Feed side window glass (2) out of power window unit (3).

Installation:

Adjust REAR SIDE WINDOW .

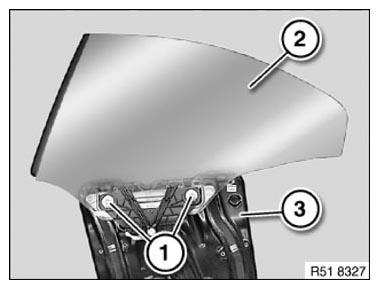

Fig 1: Identifying Side Window Glass, Power Window Unit And Screws
G09893993Courtesy of BMW OF NORTH AMERICA, INC.
