Sectional Painting

Follow GENERAL INSTRUCTIONS ON PAINTING .

Front door above cutting edge

Area specification applies to all paint stages.

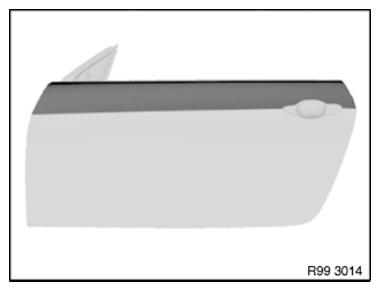

Fig 1: Identifying Front Door Above Cutting Edge

Courtesy of BMW OF NORTH AMERICA, INC.

Rear lid, top

Area specification applies to all paint stages.

Fig 2: Identifying Rear Lid, Top

Courtesy of BMW OF NORTH AMERICA, INC.

Rear lid, bottom

Area specification applies to all paint stages.

Fig 3: Identifying Rear Lid, Bottom

Courtesy of BMW OF NORTH AMERICA, INC.
