34 21 200 Removing and installing or replacing brake pads on both rear disc brakes (Teves floating caliper)

Special tools required:

IMPORTANT:

Brake pad wear sensor: after removal it must be replaced (brake pad wear sensor loses its retention capability in the break pad).
Retaining pins and expanding spring: for vehicles older than 48 months it is recommended to replace the retaining spring!

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces for the brake pads on the brake caliper mounting bracket. Instead, clean with brake cleaner BMW part no. 83 19 2 154 780 and apply a thin coating of brake pad paste BMW part no. 83 19 2 158 851 (3 g) or 83 19 2 158 852 (100 g).
Spread brake pad paste onto the marked surfaces using a brush!
Observe GUIDELINE FOR APPLYING BRAKE PAD PASTE ON BRAKE PADS AND BRAKE ANCHOR PLATE !

IMPORTANT: European version only.
Sport brake pads for M3:

Due to the increased strain on the brake discs, we recommend that you also replace the BRAKE DISCS when fitting a new set of brake pads
It is absolutely essential to exchange the BRAKE DISCS if cracked ≥ 13 mm even before the brake pad is worn

Necessary preliminary tasks:

Remove WHEELS .
Remove BRAKE PAD WEAR SENSOR

Lift out retaining spring (1).

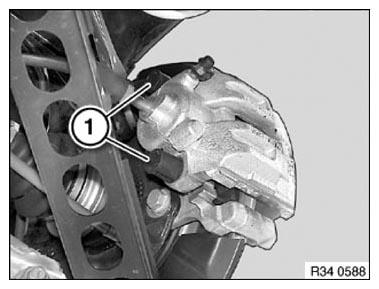

Fig 1: Removing Retaining Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover plug (1).

Fig 2: Identifying Cover Plug

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Tie brake caliper back and do not allow to hang from brake hose.

Unscrew guide bolts (1).

Remove brake caliper (2) by pulling forward.

Installation note:

Tightening torque 34 21 4AZ .

Clean guide screws only; do not grease.

Check threads.

Replace all guide screws which are not in perfect condition.

Fig 3: Identifying Brake Caliper And Guide Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove outer brake pad.

Inner brake pad is located with its spring in the piston.

IMPORTANT: Mark any worn brake pads.
In the event of one-sided brake pad wear, do not change brake pads round.

Clean brake pads.

Do not grease backs of brake pads sleeve.

Fig 4: Removing Outer Brake Pad

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: When pressing down piston, note brake fluid level in expansion tank.
Overflowing brake fluid will damage the paintwork.

Turn piston back fully with special tool 34 1 050 .

Fig 5: Turning Piston Back Using Special Tool 34 1 050

Courtesy of BMW OF NORTH AMERICA, INC.

Check minimum brake disc thickness:

Position special tool 34 1 280 at three measuring points in area (1) and measure.
Compare measuring result and lowest value with SETPOINT VALUE .

Fig 6: Checking Minimum Brake Disc Thickness
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: New brake pads may only be fitted if the brake disc thickness is greater than the MINIMUM BRAKE DISC THICKNESS (MIN TH).

Check dust boot for damage and renew if necessary.

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

IMPORTANT: Dust boot must not come into contact with brake pad paste as this may cause the dust boot to swell.

Fig 7: Identifying Contact Surface Of Brake Piston

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surfaces (1) of T-heads/brake caliper housing with brake cleaner and apply a thin coating of brake pad paste.

Fig 8: Identifying Contact Surfaces Of T-Heads/Brake Caliper Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surface (1) of brake caliper with brake cleaner and apply a thin coating of brake pad paste.

Fig 9: Identifying Contact Surface Of Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (1) for the brake pads on the brake caliper mounting bracket. Clean guide surfaces (1) with brake cleaner and apply a thin coating of brake pad paste.

Fig 10: Identifying Guide Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (1 and 2) for the brake pads on the brake caliper mounting bracket. Clean guide surfaces (1 and 2) with brake cleaner and apply a thin coating of brake pad paste.

Fig 11: Identifying Guide Surfaces For Brake Pads On Brake Caliper Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat the T-head of the inner brake pad with brake pad paste in area (1 and 2).

Fig 12: Coating T-Head Of Inner Brake Pad With Brake Pad Paste

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat the T-head of the outer brake pad with brake pad paste in area (1 and 2).

Fig 13: Coating T-Head Of Outer Brake Pad With Brake Pad Paste

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After completing repair work:

Fully depress brake pedal several times so that brake pads contact brake discs.
When installing new brake pads at front and rear axles, brake fluid level must be brought up to "MAX" marking.
Read and comply with notes on BRAKING IN NEW BRAKE DISCS/BRAKE PADS .
When replacing pads, reset CBS display in accordance with factory specification.
