34 11 250 Removing and installing/replacing a brake carrier/brake guard plate at front

Necessary preliminary tasks:

• Remove front BRAKE DISCS

Release screws (1) and remove brake guard plate (2).

Installation:

Tightening torque 34 11 3AZ .

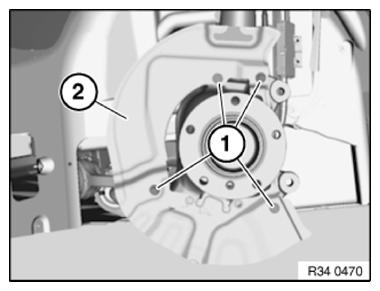

Fig 1: Identifying Brake Guard Plate And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
