34 11 000 Removing and installing/replacing brake pads on both front disc brakes (M3/1-Series M Coupe)

Special tools required:

IMPORTANT:

Brake pad wear sensor: after removal it must be replaced (brake pad wear sensor loses its retention capability in the break pad).
Retaining pins and expanding spring: for vehicles older than 48 months it is recommended to replace the retaining spring!

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces for the brake pads on the brake caliper mounting bracket. Instead, clean with brake cleaner BMW part no. 83 19 2 154 780 and apply a thin coating of brake pad paste BMW part no. 83 19 2 158 851 (3 g) or 83 19 2 158 852 (100 g).
Spread brake pad paste onto the marked surfaces using a brush!
Observe GUIDELINE FOR APPLYING BRAKE PAD PASTE ON BRAKE PADS AND BRAKE ANCHOR PLATE !

IMPORTANT: European version only.
Sport brake pads for M3:

Due to the increased strain on the brake discs, we recommend that you also replace the BRAKE DISCS when fitting a set of brake pads
It is absolutely essential to replace the BRAKE DISCS if cracked ≥ 13 mm even before the brake pad is worn

Necessary preliminary tasks:

Remove WHEELS .
Remove BRAKE PAD WEAR SENSOR

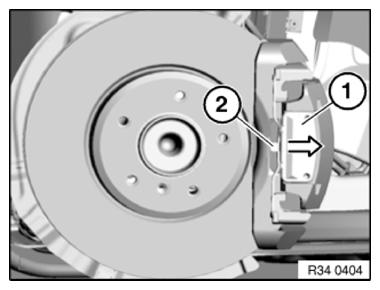

Lever out retaining spring (1) in direction of arrow towards rear.

Installation note:

Replace retaining spring (1).

Attach retaining spring (1) first at top and bottom and then allow retaining lug (2) to engage in recess of brake caliper housing.

Fig 1: Attaching Retaining Spring

Courtesy of BMW OF NORTH AMERICA, INC.

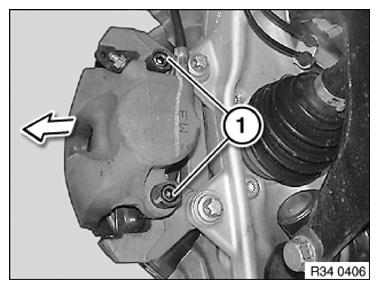

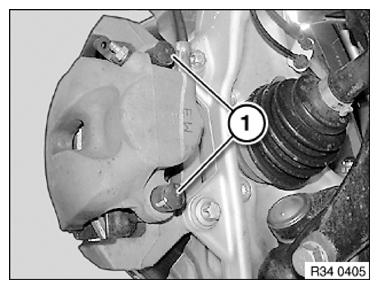

Remove plastic plugs (1).

Fig 2: Identifying Plastic Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

Left:

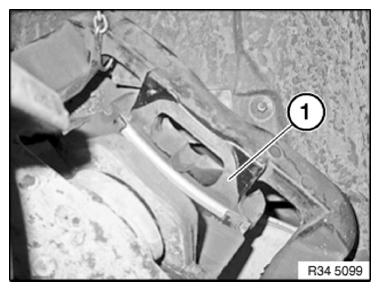

Pull brake pad wear sensor (1) towards rear out of pad.

Release guide screws (2) with special tool 34 1 080 . Withdraw brake caliper backwards.

Installation note:

Only clean guide bolts; do not grease.

Check threads.

Replace all guide screws which are not in perfect condition.

Tightening torque 34 11 4AZ .

Fig 3: Removing Brake Pad Wear Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

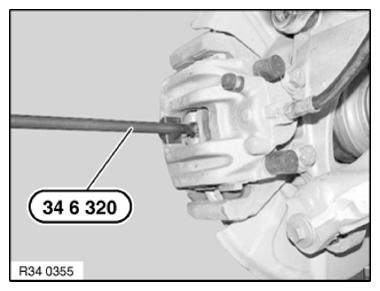

Press back brake pads and piston with special tool 34 6 320 .

IMPORTANT: When forcing piston back:

Pay attention to brake fluid level in expansion tank; brake fluid that spills over will damage paintwork.

Fig 4: Pressing Back Brake Pads And Piston Using Special Tool 34 6 320

Courtesy of BMW OF NORTH AMERICA, INC.

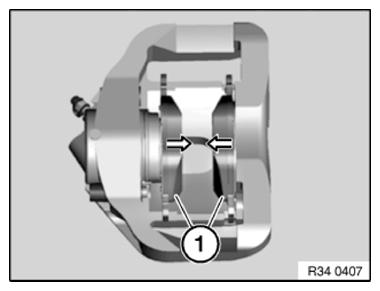

Press brake pads inwards and remove.

The two brake pads are seated with a spring in the piston or in the brake caliper housing and must not be mixed up.

IMPORTANT: Mark any worn brake pads.

In the event of one-sided brake pad wear, do not change brake pads round.

Observe minimum thickness of brake pads.

Clean brake pads.

Do not apply grease to brake lining backplate.

Fig 5: Pressing Brake Pads Inwards

Courtesy of BMW OF NORTH AMERICA, INC.

Check minimum brake disc thickness:

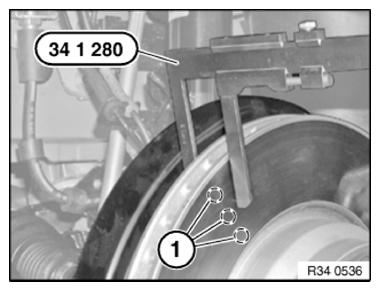

Position special tool 34 1 280 at three measuring points in area (1) and measure.
Compare measuring result and lowest value with setpoint value.

Fig 6: Checking Minimum Brake Disc Thickness
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: New brake pads may only be fitted if the brake disc thickness is greater than the minimum brake disc thickness (MIN TH).

Check dust boot for damage and renew if necessary.

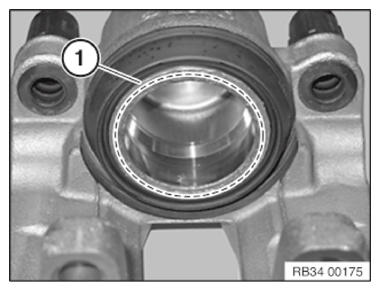

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

IMPORTANT: Dust boot must not come into contact with brake pad paste as this may cause the dust boot to swell.

Fig 7: Identifying Contact Surface Of Brake Piston

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Do not grease contact surface (1).
Clean contact surface (1) with brake cleaner.

Contact surface must be free from oil and grease.

Fig 8: Identifying Brake Pad Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Brake pad with adhesive film must be installed in each case on the outside in direction of travel!

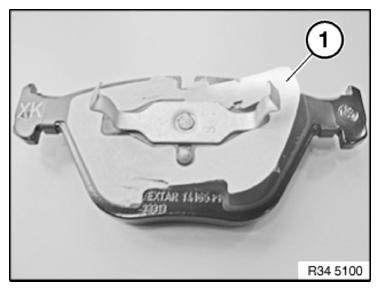

Detach protective film (1) from brake pad and install pad.

Fig 9: Identifying Brake Pad Protective Film

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surfaces (1) of T-heads/brake caliper housing with brake cleaner and apply a thin coating of brake pad paste.

Fig 10: Identifying Contact Surfaces Of T-Heads/Brake Caliper Housing

Courtesy of BMW OF NORTH AMERICA, INC.

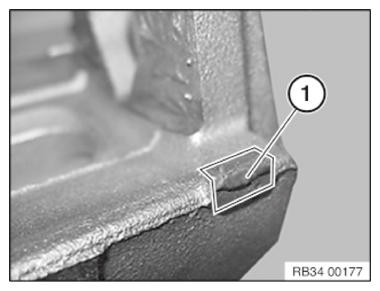

Clean contact surface (1) of brake caliper with brake cleaner and apply a thin coating of brake pad paste.

Fig 11: Identifying Contact Surface Of Brake Caliper With Brake Pad

Courtesy of BMW OF NORTH AMERICA, INC.

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (1) for the brake pads on the brake caliper mounting bracket. Clean guide surfaces (1) with brake cleaner and apply a thin coating of brake pad paste.

Fig 12: Identifying Guide Surfaces On Brake Caliper Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

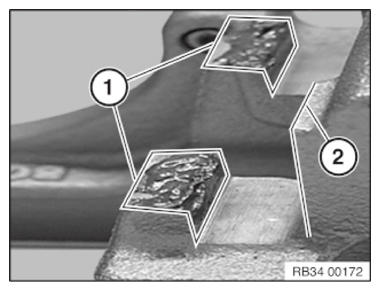

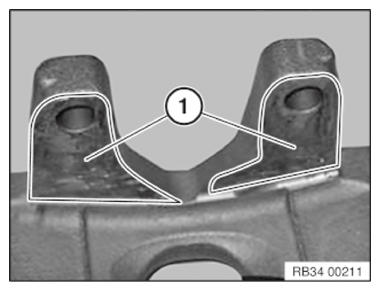

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (1 and 2) for the brake pads on the brake caliper mounting bracket. Clean guide surfaces (1 and 2) with brake cleaner and apply a thin coating of brake pad paste.

Fig 13: Identifying Brake Pad Paste Applying Area On Brake Caliper Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

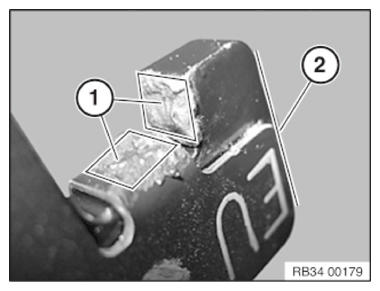

Lightly coat the T-head of the inner brake pad with brake pad paste in area (1 and 2).

Fig 14: Coating T-Head Of Inner Brake Pad With Brake Pad Paste

Courtesy of BMW OF NORTH AMERICA, INC.

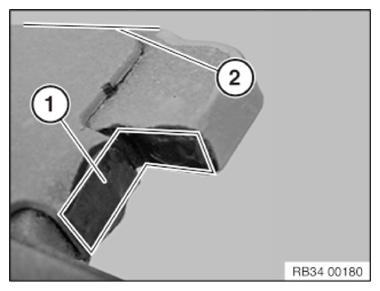

Lightly coat the T-head of the outer brake pad with brake pad paste in area (1 and 2).

Fig 15: Coating T-Head Of Outer Brake Pad With Brake Pad Paste

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After completing work:

Fully depress brake pedal several times so that brake pads contact brake discs.
When installing new brake pads at front axles, brake fluid level must be brought up to "MAX" marking.
Read and comply with notes on BRAKING IN NEW BRAKE DISCS/BRAKE PADS .
If necessary, when replacing pads, reset CBS display in accordance with factory specification.
