54 37... Convertible top assembly position

Move convertible top so that angle of hinges is greater than 90°.

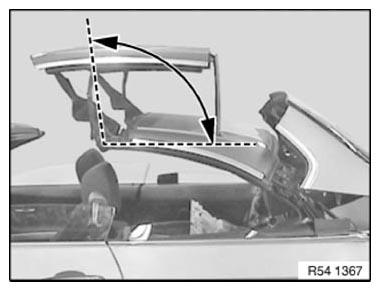

Fig 1: Identifying Convertible Top Angle

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage! Pressure in hydraulic system drops and convertible top loses its position.

Support rear roof shell to convertible top cover with suitable auxiliary material, e.g. hard foam.

Rear roof shell is supported by auxiliary material on convertible top cover.

Auxiliary material must lie over wide area and over entire length.

Select auxiliary material with a smooth surface, as otherwise pressure points in the outer skin and seal may arise.

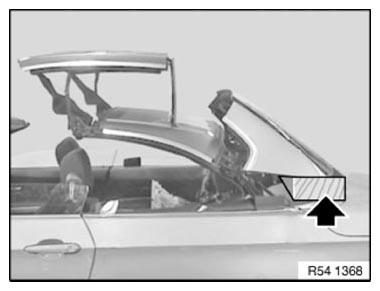

Fig 2: Supporting Rear Roof Shell To Convertible Top Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Roof shells block each other.
