54 37... Checking roof shell seal for leaks

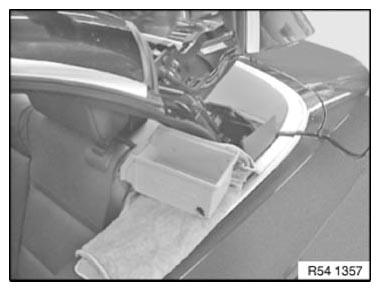

Cover capping and place collecting container underneath.

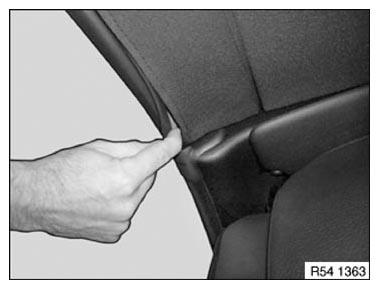

Fig 1: Identifying Roof Shell Seal Capping

Courtesy of BMW OF NORTH AMERICA, INC.

Middle roof shell seal at corner of case:

Partially check corner of case with water bottle.

Raise sealing lip slightly.

Squirt water at base.

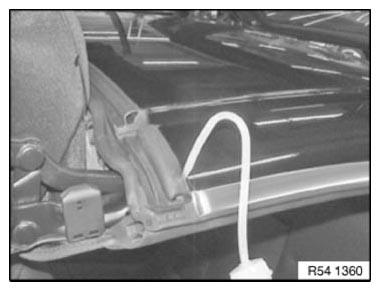

Fig 2: Identifying Middle Roof Shell Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Middle roof shell seal at S-bend:

Partially check at S-bend with water bottle.

Raise sealing lip slightly.

Squirt water at base.

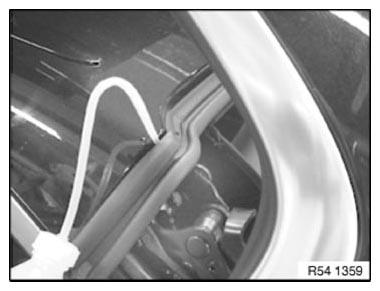

Fig 3: Identifying Middle Roof Shell Seal S-Bend

Courtesy of BMW OF NORTH AMERICA, INC.

Check whether water is present in pocket.

NOTE: Middle roof shell is leaking if water is present in pocket.

Fig 4: Checking Whether Water Pocket

Courtesy of BMW OF NORTH AMERICA, INC.

Middle roof shell seal at corner of case:

Partially check corner of case with water bottle.

Raise sealing lip slightly.

Squirt water at base.

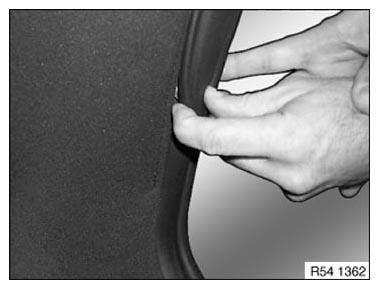

Fig 5: Identifying Middle Roof Shell Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Middle roof shell seal at hinge channel:

Partially check seat at hinge channel with water bottle.

Raise sealing lip slightly.

Squirt water at base.

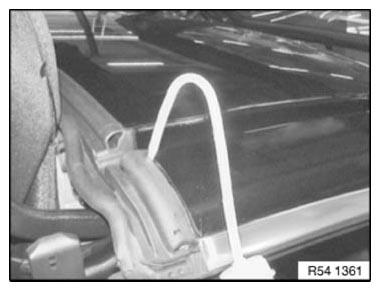

Fig 6: Identifying Middle Roof Shell Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Check whether water is present in pocket.

NOTE: Middle roof shell is leaking if water is present in pocket.

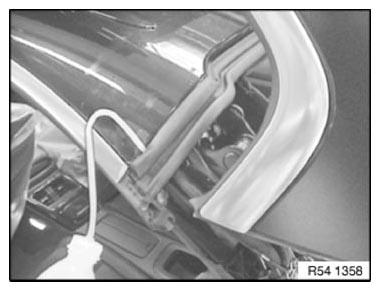

Fig 7: Checking Whether Water Pocket

Courtesy of BMW OF NORTH AMERICA, INC.

Cowl panel seal in A-pillar area:

Raise sealing lip slightly.

Squirt water at base with water bottle and check for leaks.

NOTE: A-pillar seal is leaking if water is present on inside of marking.

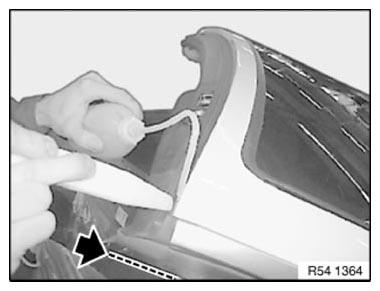

Fig 8: Checking Cowl Panel Seal

Courtesy of BMW OF NORTH AMERICA, INC.
