54 37 295 Emergency closing hardtop

Special tools required:

Necessary preliminary tasks:

Remove BOTH SIDE TRIM PANEL UPPER SECTIONS .
Open all windows.

IMPORTANT: Always perform the emergency closing procedure with the aid of an assistant.
Only move the soft top manually when the ignition is switched off.
Danger of damage to hydraulic valves.
The applied force must always be even on the left and right otherwise the linkage will bend.
Always execute all movements of the roof module with the assistance of a second person.
Danger of injury by trapping!

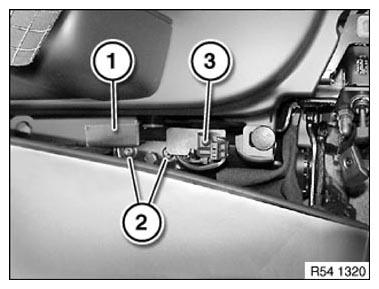

Turn the hydraulic cylinder (1) toward the inside of the vehicle.

Mount the special tool 54 0 161 on the piston rod.

Fig 1: Turning Hydraulic Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

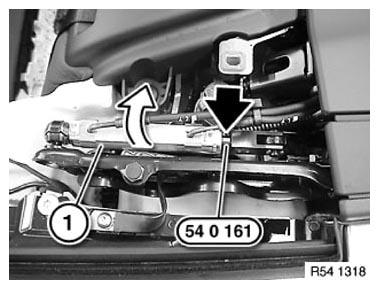

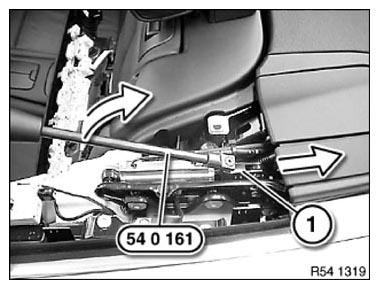

Tip the special tool 54 0 161 upward.

This causes the coupling lock (1) to jump over the dead center.

Then slide on the coupling lock (1).

Fig 2: Sliding Special Tool (54 0 161) On Coupling Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Manually open the rear module.

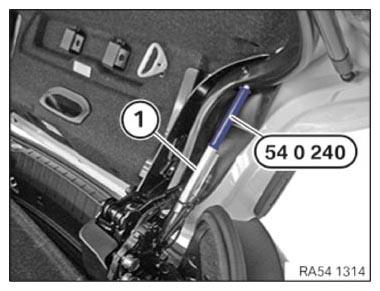

Clip the special tool 54 0 240 onto hydraulic cylinder (1) on left and right.

IMPORTANT: The opening in the assembly support must face towards the rear of the vehicle.

Fig 3: Installing Special Tool (54 0 240) Onto Hydraulic Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

Stick fabric adhesive tape (1) onto the ornamental grille of the air outlet.

Carefully push the ornamental grille of the air outlet aside.

Release the screws (2) from base plate on the left and right.

Installation note:

Replace screws.

Right side of vehicle only:

Release the screw (3) from the hall effect sensor.

Fig 4: Identifying Base Plate, Hall Effect Sensor Screws

Courtesy of BMW OF NORTH AMERICA, INC.

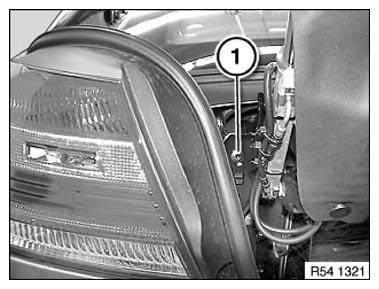

Open the tailgate manually using the key.

Release the screw (1) on the left and right for the closing part.

Installation note:

Replace screws.

Fig 5: Identifying Tailgate Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Any luggage in the luggage compartment must be removed.
Roof shells cannot be fully lifted out yet!

If necessary, carefully raise the roof shells and remove the items of luggage with the assistance of a third person.

Only grasp the front roof shell when raising the roof shells.

Fig 6: Removing Luggage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

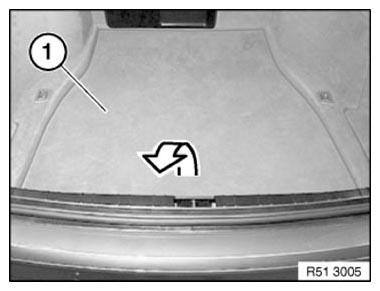

Take out luggage compartment floor trim panel.

Fig 7: Removing Luggage Compartment Floor Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

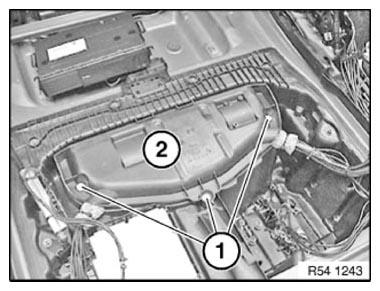

Release screws (1).

Remove cover (2) for hydraulic unit.

Fig 8: Identifying Hydraulic Unit Cover And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

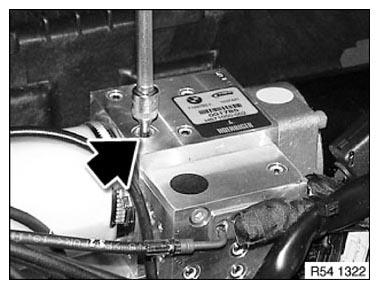

Use the Allen key to open the shutoff valve on hydraulic unit by one turn.

NOTE: The system is depressurized.

Fig 9: Locating Hydraulic Unit Bleeder Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Only grasp the front roof shell when raising the roof shells.

Fig 10: Removing Luggage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

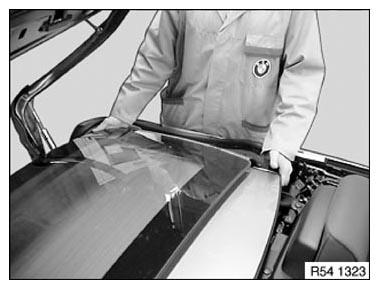

IMPORTANT: Note the weight of the roof shell!

Lift out the roof shells evenly.

NOTE: The plug connection for the hall effect sensor detaches during lifting.

Fig 11: Detaching Hall Effect Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

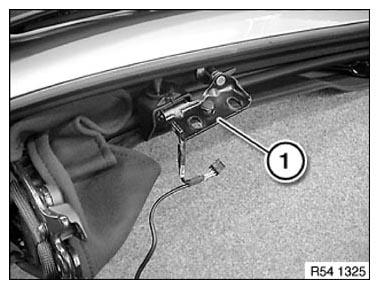

Remove the rear closing part (1) on left and right.

Fig 12: Identifying Hardtop Rear Closing Part

Courtesy of BMW OF NORTH AMERICA, INC.

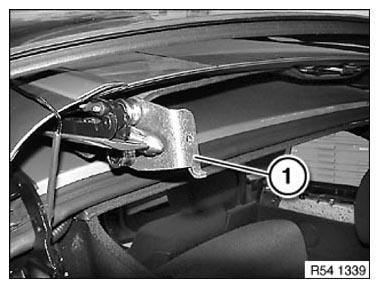

Remove the front closing part (1) on left and right.

Fig 13: Identifying Hardtop Front Closing Part

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Remove special tool 54 0 240 .

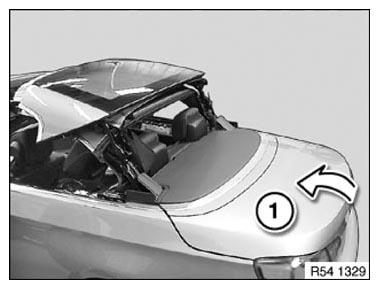

Close the rear module (1).

Fig 14: Closing Rear Module

Courtesy of BMW OF NORTH AMERICA, INC.

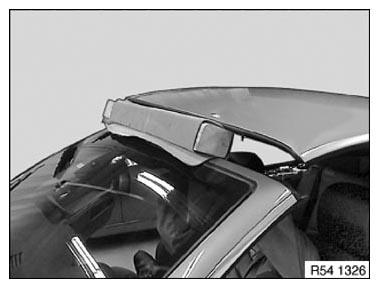

IMPORTANT: Use suitable auxiliary materials to ensure the roof shell is not rested on the base plates.
Otherwise, the extended locking pins of the front roof shell rest against the center roof shell. Risk of damage!

Fig 15: Identifying Roof Shell

Courtesy of BMW OF NORTH AMERICA, INC.

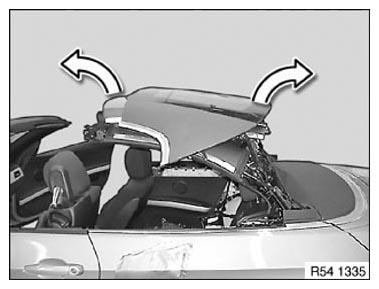

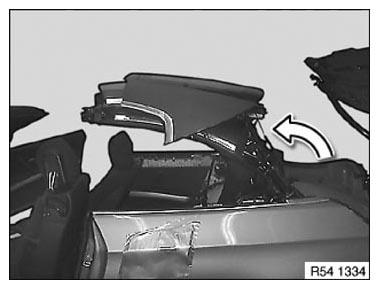

Unfold the roof shells evenly.

Fig 16: Removing Roof Shells

Courtesy of BMW OF NORTH AMERICA, INC.

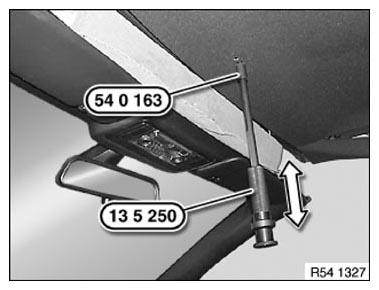

Unclip the protective cap.

Fit the special tool 54 0 163 in conjunction with 13 5 250 .

Drive out the square pin.

Fig 17: Installing Special Tool (54 0 163)

Courtesy of BMW OF NORTH AMERICA, INC.

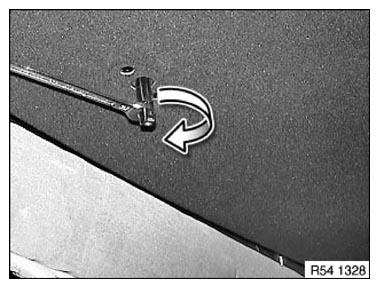

Open the closures by turning the square pin.

Fig 18: Turning Hardtop Square Pin

Courtesy of BMW OF NORTH AMERICA, INC.

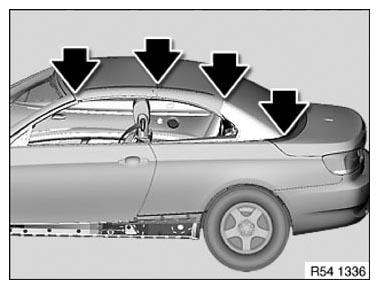

Press on the roof shells and soft top compartment lid on the left and right sides in the marked area.

Lock the roof shells using the soft top latches with the square piece (turn back to the stop).

Lower the square pin and install the protective cap.

Installation note:

The square pin is under tension.

When driving in the square pin, it may be necessary to move it back and forth with the open-end spanner.

Fig 19: Locating Soft Top Compartment Lid

Courtesy of BMW OF NORTH AMERICA, INC.

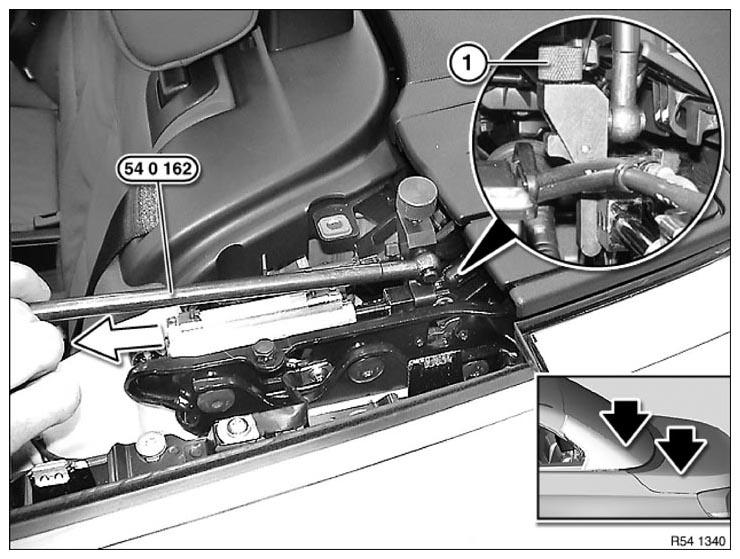

Fig 20: Installing Special Tool (54 0 162)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown with the stop top open for a better view.

Mount the special tool 54 0 162 on the closure joint of the hydraulic cylinder.

Tighten the knurled screw (1).

WARNING: Danger of injury! If incorrectly mounted, the special tool may slip off.
It is imperative that you take suitable protective measures.

Cover sharp-edged areas.

Wear long-sleeved work clothes and protective gloves.

Press down the rear roof shell and soft top compartment lid with an assistant and lock the coupling lock on the left and right using the special tool 54 0 162 .

Pull the coupling lock back past the dead center.

Use Allen key to close shutoff valve on hydraulic unit.

IMPORTANT: The customer must no longer operate the soft top after it has been closed with the emergency closing procedure!
For protection, remove fuse 12 for soft top.
Place removed separate components in vehicle.

The emergency closing step is now completed.

Installation note:

Replace screws.

Screw on the closing parts loosely.

The closing parts should still be able to slide in order to center themselves.

Open soft top.

Manually open the soft top compartment lid with a key and tighten the screws for the rear closing parts.

Tighten the screws for the front closing parts.

Reassemble the vehicle.
