411142 Die-plate Mechanical tool

NOTE: (Matrix) Available as part of a complete tool set only 41 1 140 (83 30 0 494 824).

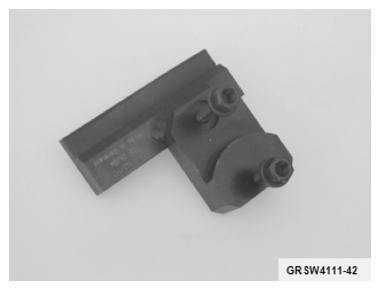

Fig 1: Identifying Die-Plate (0495047)

G09890729

Courtesy of BMW OF NORTH AMERICA, INC.
