63 31 085 Removing and installing/replacing luggage compartment light (rear lid)

Lever out luggage compartment light (1) in direction of arrow.

Disconnect associated plug connection and remove luggage compartment light (1).

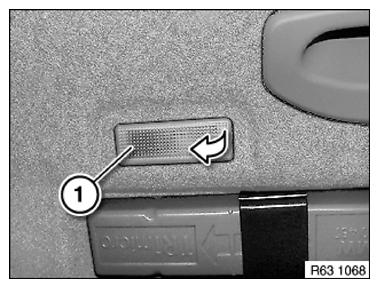

Fig 1: Removing Luggage Compartment Light

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

• If necessary, modify BULB .
• Note BULB TYPE .
