51 24 145 Removing and installing/replacing button for tailgate activation

Special tools required:

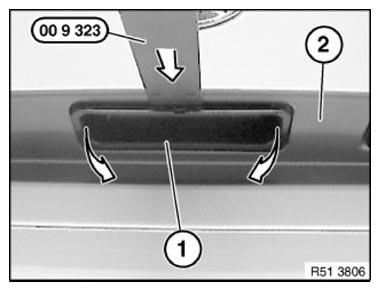

Slide special tool 00 9 323 under the front edge of button (1) and lift button (1) out.

Pull button (1) out of rear lid (2).

Fig 1: Pulling Out Button Of Rear Lid

Courtesy of BMW OF NORTH AMERICA, INC.

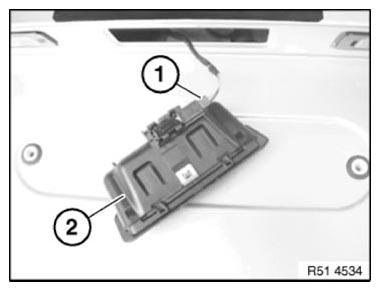

Unplug connector (1) and remove button (2).

Installation note:

Perform function check with tailgate open.

Fig 2: Identifying Connector And Button

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

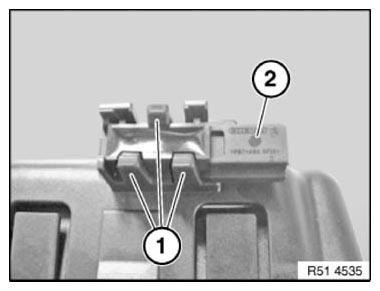

Carefully release latch mechanisms (1) and remove microswitch (2).

Fig 3: Identifying Latch Mechanisms And Microswitch

Courtesy of BMW OF NORTH AMERICA, INC.
