51 24 100 Removing and installing/replacing rear lid lock

Necessary preliminary tasks:

Left side:

Disconnect plug connection (1).

Disconnect plug connection (2) on rear lid lock (4).

Release screws (3).

Tightening torque 51 24 1AZ .

Fig 1: Identifying Plug Connection, Screws And Rear Lid Lock (Left Side)

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

Disconnect plug connection (1) on rear lid lock (3).

Disconnect plug connections (2).

Release screws (4) and fold rear lid lock down (3) slightly.

Tightening torque 51 24 1AZ .

Fig 2: Identifying Plug Connection, Screws And Rear Lid Lock (Right Side)

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip holder (1) with screwdriver (2).

Unhook Bowden cable (4) from lever (3).

Remove rear lid lock (5).

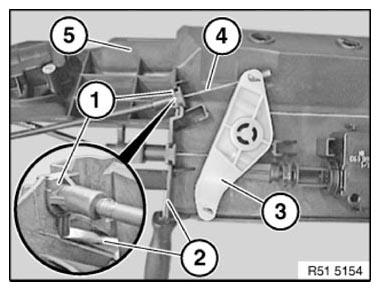

Fig 3: Unclipping Holder

Courtesy of BMW OF NORTH AMERICA, INC.
