51 13 023 Removing and installing/replacing grille in engine hood/bonnet on left or right

Necessary preliminary tasks:

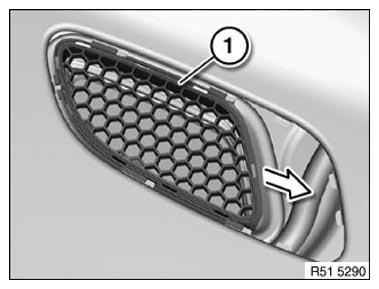

Pull grille (1) in direction of arrow towards rear and remove.

Installation:

Make sure grille (1) is correctly installed in guides of engine hood/bonnet.

Fig 1: Pulling Grille

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

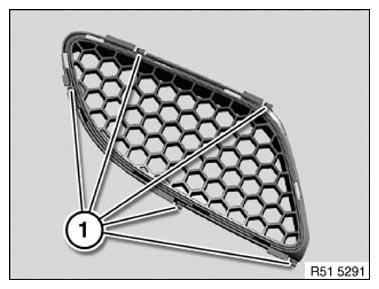

Catches (1) on grille must not be damaged.

Fig 2: Identifying Catches

Courtesy of BMW OF NORTH AMERICA, INC.
