51 12 801 Removing and installing/replacing holder for rear left or right bumper

Necessary preliminary tasks:

• Remove REAR BUMPER TRIM .

E93 only:

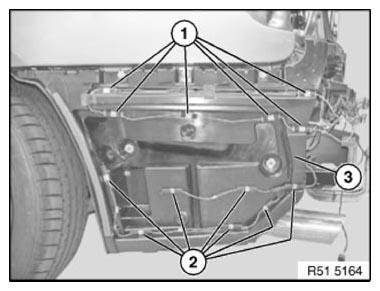

If necessary, release aerial/antenna holders (1 and 2) from holder (3).

Installation:

If necessary, replace faulty aerial/antenna holders (1 and 2).

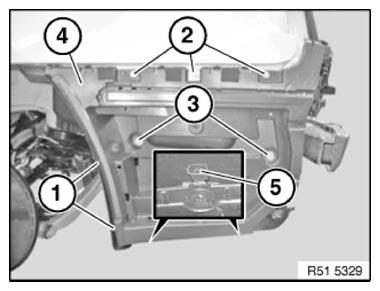

Release screws (1 and 2).

Release nuts (3) and remove bracket (4).

Installation:

Make sure lugs (5) of underbody panelling run into guides on holder (4) at bottom.

Replacement:

• Modify sheet nuts (3).
• Replace foam seal (4).

Installation:

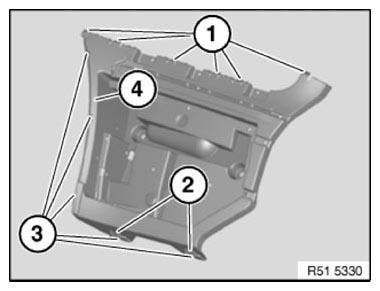

Catches (1) and guides (2) must not be damaged.

If necessary, replace faulty metal nuts (3).
