51 12 050 Removing and installing/replacing carrier for rear bumper trim

Necessary preliminary tasks:

• Remove BUMPER TRIM .

Release nuts (1) and remove carrier (2).

Tightening torque 51 12 1AZ .

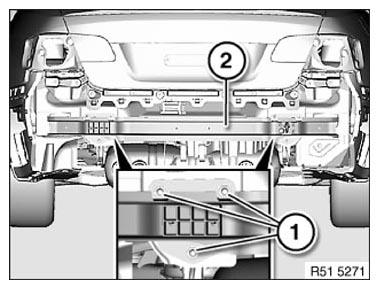

Fig 1: Identifying Nuts And Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Modify rear impact absorber (1).

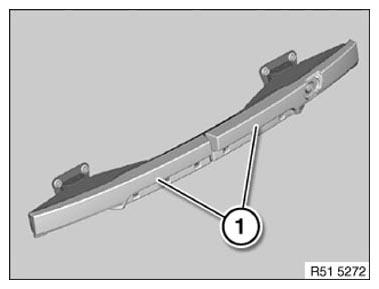

Fig 2: Identifying Rear Impact Absorber

Courtesy of BMW OF NORTH AMERICA, INC.
