51 16... Removing and installing/replacing trim on left or right door mirror

Necessary preliminary tasks:

• Remove COVER CAP FROM DOOR MIRROR .

Release screws (1) and carefully remove trim (2) towards front.

Installation:

Make sure trim (2) is correctly seated on door mirror.

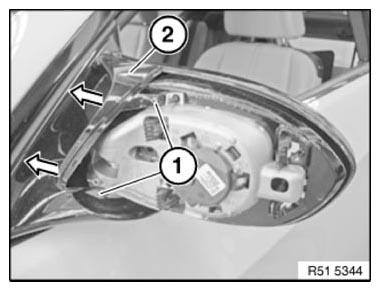

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Holders (1) and guide (2) must not be damaged.

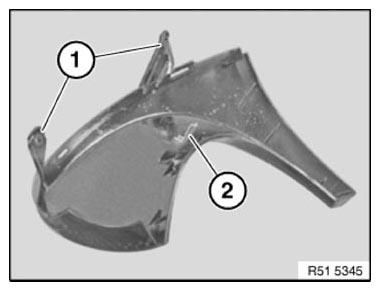

Fig 2: Identifying Holders And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
