51 16 154 Removing and installing/replacing insert for center console

Necessary preliminary tasks:

• Remove TRIM FOR STORAGE COMPARTMENT .

Remove foam material (1).

Release screws (2) and remove insert/ashtray (3).

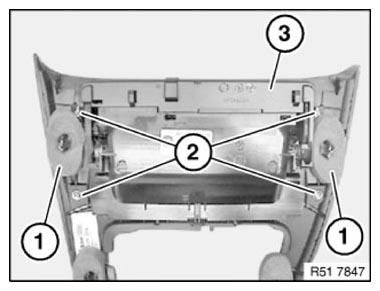

Fig 1: Identifying Foam Material, Screws And Ashtray

Courtesy of BMW OF NORTH AMERICA, INC.
