51 45... Removing and installing carrier for instrument panel

Necessary preliminary tasks:

WARNING: To avoid injury, cover holder (1) on support tube (2).

Fig 1: Identifying Support Tube Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Detach wiring harness (3) from support tube (2).

Release screws (1) of heater on support tube (2).

Tightening torque 64 11 6AZ .

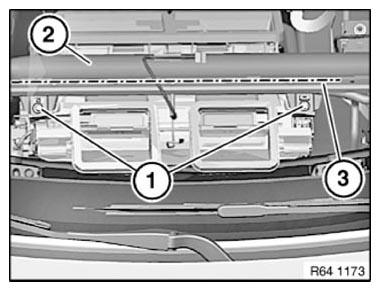

Fig 2: Identifying Support Tube And Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) on right and left on support tube (2).

Tightening torque 51 71 5AZ .

Fig 3: Identifying Support Tube Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) of heater on support tube (2).

Tightening torque 51 71 6AZ .

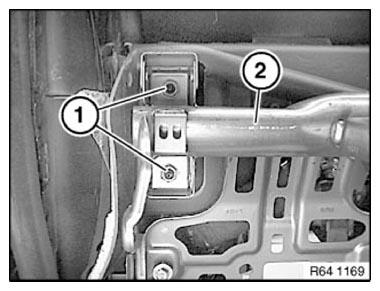

Fig 4: Identifying Heater Support Tube Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on support tube (2).

Tightening torque 51 71 5AZ .

Fig 5: Identifying Support Tube Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on support tube (2) from bracket (3).

Tightening torque 51 71 4AZ .

Detach support tube (2) with a 2nd person helping and remove.

Fig 6: Identifying Support Tube Bracket Screws

Courtesy of BMW OF NORTH AMERICA, INC.
