51 23... Removing/installing ball sockets with clip
WARNING:
Danger of injury! When installed, the gas pressurized shock absorber is under preload. Minimize preload as far as possible before removing.
IMPORTANT:
Never lift off ball socket with engaged clamp.

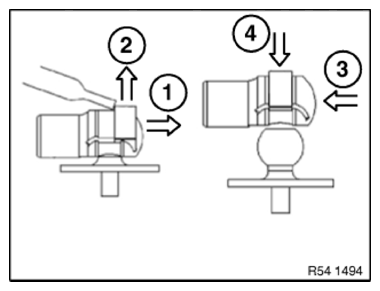

Disassembly/assembly:
- Push on clamp in direction of groove with screwdriver.
- Lift off ball socket from ball pin.
- Slide clamp back.
- Fit ball socket on ball stud and snap into place with force.
Installation note:
Pack grease into two opposite positions in socket. The grease spreads after installation on the ball pin all round in the ball socket.
