51 23 110 Removing and installing/replacing left hood/bonnet lock

Unclip coupling (1) from side panel.

Lever out cover (2) at coupling (1).

Lever cable (3) out of coupling (1).

NOTE: The operation "Disconnect cable for hood/bonnet locks" ends here.

Fig 1: Identifying Cable, Cover And Coupling

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

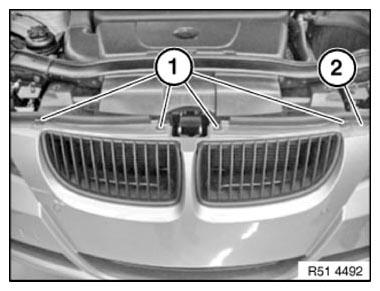

Fig 2: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Carefully pull bumper (2) forwards and feed out hood/bonnet lock (3) with cable.

Tightening torque 51 23 2AZ .

Fig 3: Identifying Bumper, Hood/Bonnet Lock And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage cable (1) from hood/bonnet lock (2).

When replacing cable for hood/bonnet locks:

Feed cable (1) out of front wall.

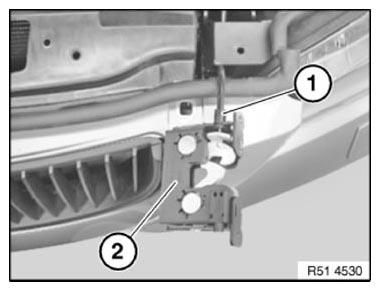

Fig 4: Identifying Cable And Hood/Bonnet Lock

Courtesy of BMW OF NORTH AMERICA, INC.
