51 23 100 Removing and installing/replacing right engine hood/bonnet lock

Necessary preliminary tasks:

Remove front intake duct

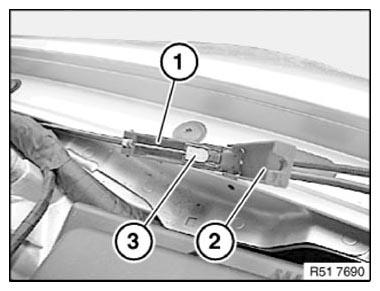

Unclip coupling (1) from side panel.

Lever out cover (2) at coupling (1).

Lever Bowden cable (3) out of coupling (1).

NOTE: The operation "Disconnect cable for hood/bonnet locks" ends here.

Fig 1: Identifying Cover, Bowden Cable And Coupling

G09893846

Courtesy of BMW OF NORTH AMERICA, INC.

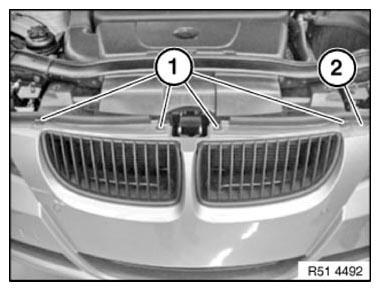

Release screws (1) on bumper trim (2).

Fig 2: Identifying Screws And Bumper Trim

G09893847

Courtesy of BMW OF NORTH AMERICA, INC.

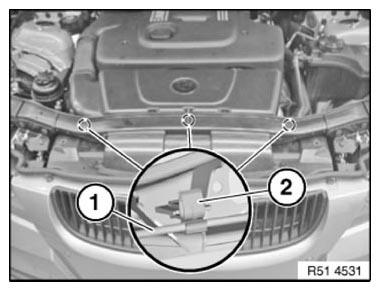

Release Bowden cable (1) from holder (2).

Fig 3: Identifying Bowden Cable And Holder

G09893848

Courtesy of BMW OF NORTH AMERICA, INC.

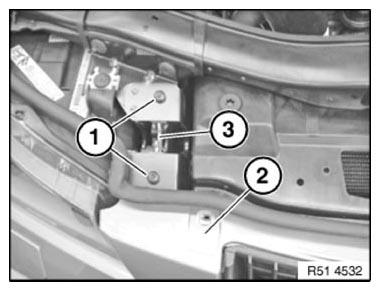

Release screws (1).

Tightening torque 51 23 2AZ .

Carefully pull bumper trim (2) forwards and feed out hood/bonnet lock (3) with cable.

Fig 4: Identifying Screws, Bumper Trim And Hood/Bonnet Lock

G09893849

Courtesy of BMW OF NORTH AMERICA, INC.

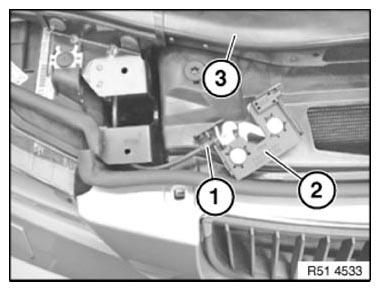

Disengage cable (1) from hood/bonnet lock (2).

When replacing cable for hood/bonnet locks:

Feed cable (1) out of front wall (3).

Fig 5: Identifying Cable, Hood/Bonnet Lock And Front Wall

G09893850
