51 41 270 Removing and installing/replacing door pocket trim

Special tools required:

Place the special tool 00 9 317 to the side and release the latch mechanisms (1) of the trim (2).

Feed out trim (2) on the door pocket to the top.

Installation note:

Insert trim (2) on the door pocket from the top.

Align latch mechanisms (1) of trim (2) on the door pocket and fasten trim (2) to the door pocket.

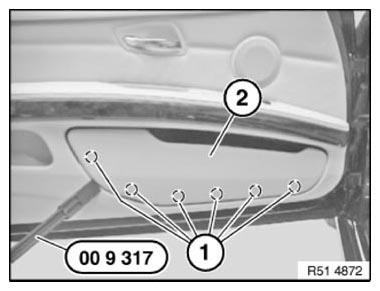

Fig 1: Removing Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms (1) on cover (2) must not be damaged.

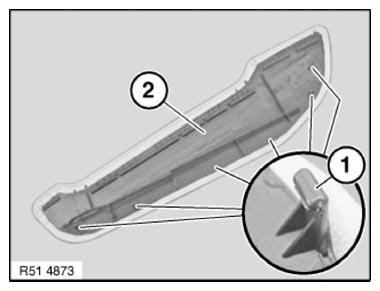

Fig 2: Identifying Door Pocket Trim Cover And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.
