51 11 773 Replacing front lower left or right deformation element

Necessary preliminary work:

• Remove support for bumper panel at front bottom.
• Remove FRONT UNDERBODY PROTECTION .
• Remove brake air duct.

Release screw (1).

Tightening torque 51 11 6AZ .

Unfasten screws (2).

Tightening torque 51 11 8AZ .

Remove deformation element (3).

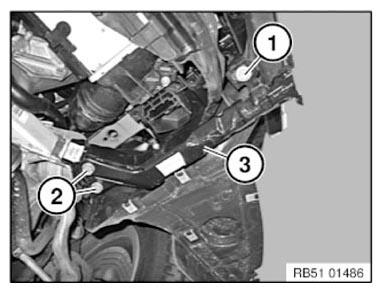

Fig 1: Identifying Screw And Deformation Element

Courtesy of BMW OF NORTH AMERICA, INC.
