51 14 000 Removing and installing/replacing front BMW badge

Special tools required:

• 00 9 325

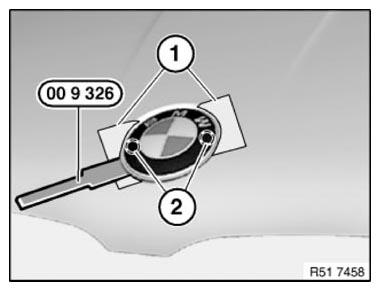

To avoid damaging the paintwork on the engine hood/bonnet, tape off edge areas (1) to sides of guide pins.

So as not to subject the BMW badge to excessive deformation, lever out the badge with special tool 00 9 325 at guide pins (2).

Fig 1: Identifying Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

The following parts must not be damaged or missing, replace if necessary:

1. Badge
2. Guide pins
3. Grommets

Adhesive tape (4)

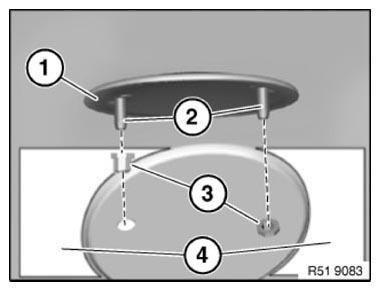

Fig 2: Identifying Badge, Guide Pins, Grommets And Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.
