Necessary preliminary work

Release screws (1).

Lift out holder.

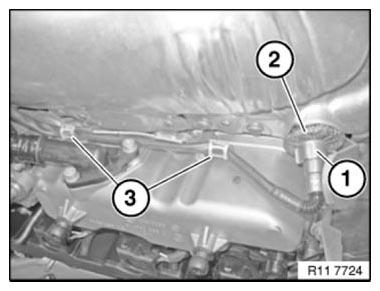

Fig 1: Identifying Holder Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2).

Tightening torque 11 65 3AZ .

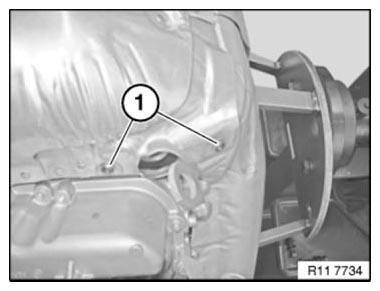

Fig 2: Identifying Screws And Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2).

Tightening torque 11 65 3AZ .

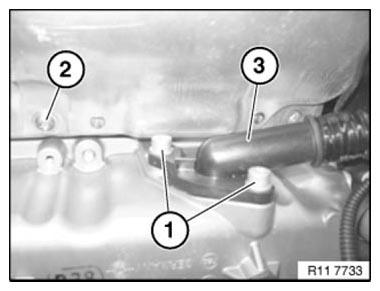

Fig 3: Identifying Screws And Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

Release retaining clip (1).

Detach wire ring (2) and set down behind oxygen sensor.

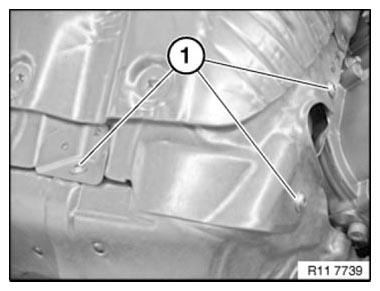

Fig 4: Identifying Retaining Clip And Wire Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Release retaining clip (1).

Detach wire ring (2) and set down behind oxygen sensor.

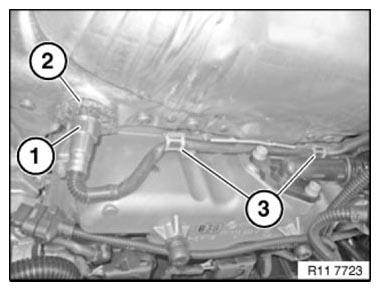

Fig 5: Identifying Oxygen Sensor With Wire Ring And Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 11 65 3AZ .

NOTE: For purposes of clarity, the graphic shows the oxygen sensor removed.

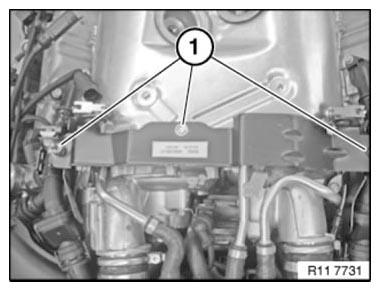

Fig 6: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 11 65 3AZ .

Lift out heat shield.

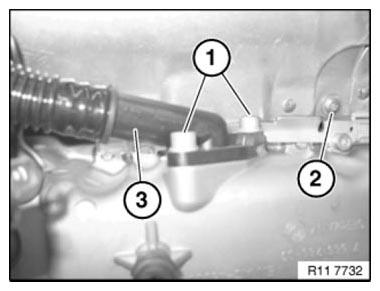

Fig 7: Identifying Heat Shield Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
