11 61 368 Removing and installing/replacing rear left charge-air duct (N55 Hybrid)

WARNING: Compliance with the following points is mandatory before beginning work:

Necessary preliminary tasks:

Installation note:

Ensure locking clamps are correctly fitted.

Lock must engage.

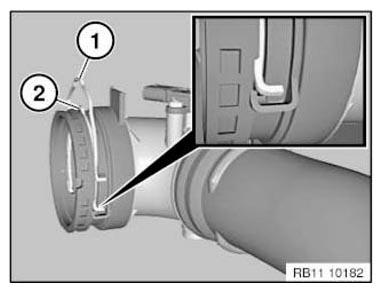

Fig 1: Identifying Charge Air Duct Lock And Unlock Positions

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unlock and disconnect line (2).

Release screw (3).

Unfasten hose clamp (4).

Unlock snap fastener (5).

Detach rear charge-air duct with gaiter (6) from front charge-air duct (7).

Release charge-air duct (6) from intake plenum connection and remove towards top.

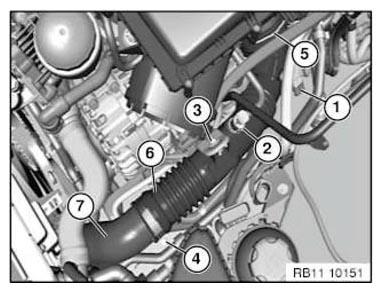

Fig 2: Identifying Charge Air Duct, Gaiter, Snap Fastener, Hose Clamp, Screw, Line And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Fasteners must audibly engage.

The gasket inside the snap fastener and bracket (1) must be coated with lubricant.

Assemble engine.
