11 61 362 Removing and installing/replacing right charge-air duct (N55 Hybrid)

WARNING: Compliance with the following points is mandatory before beginning work:

Necessary preliminary tasks:

Release lock (1) of charge air duct.

Pull charge air duct (2) off of exhaust turbocharger.

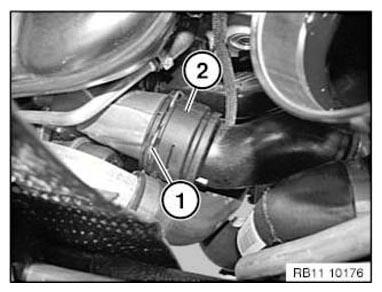

Fig 1: Identifying Charge Air Duct And Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Release lock (1) of charge air duct.

Detach charge air duct (2) from charge air cooler.

Feed out charge air duct (2) towards bottom.

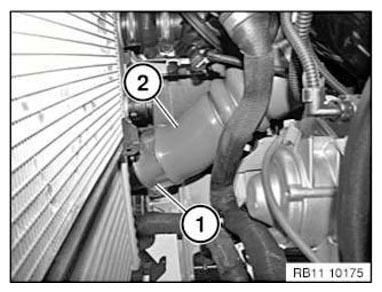

Fig 2: Identifying Charge Air Duct And Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check DME control unit (exhaust turbocharger) for correct operation.
