11 61 050 Removing and installing air intake plenum (N55 Hybrid)

WARNING: Compliance with the following points is mandatory before beginning work:

Necessary preliminary tasks:

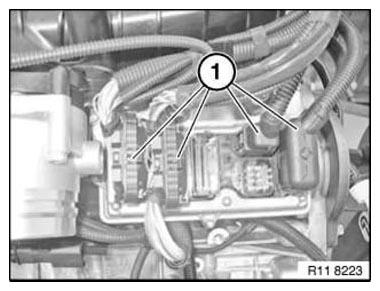

Disconnect all plug connections (1) on engine control unit.

Fig 1: Identifying Engine Control Unit Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

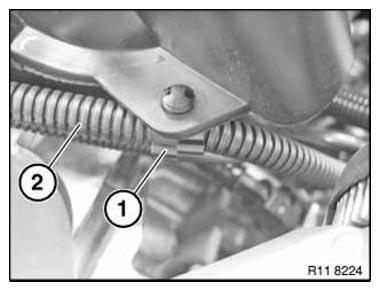

Open retaining clip (1).

Release wiring harness section (2) from retaining clip (1).

Fig 2: Identifying Air Intake Plenum Wiring Harness Section And Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

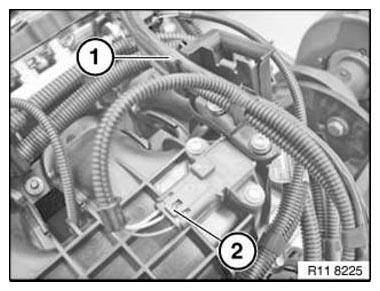

Release all wiring harness sections from holder (1).

Disconnect plug connection (2) at charging pressure sensor.

Fig 3: Identifying Charging Pressure Sensor Plug Connection And Wiring Harness Holder

Courtesy of BMW OF NORTH AMERICA, INC.

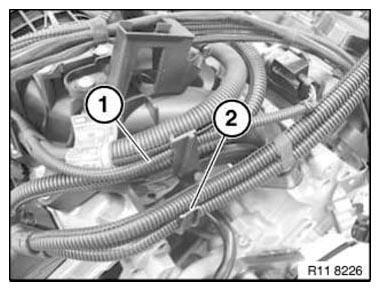

Release all wiring harness sections from holders (1 and 2).

Fig 4: Identifying Air Intake Plenum Wiring Harness Holders

Courtesy of BMW OF NORTH AMERICA, INC.

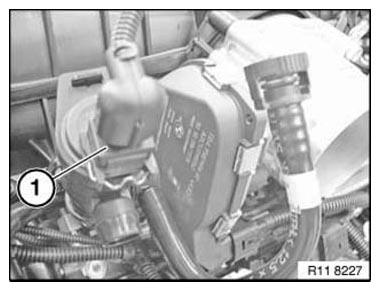

Disconnect plug connection (1) on tank vent valve.

Fig 5: Identifying Tank Vent Valve Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

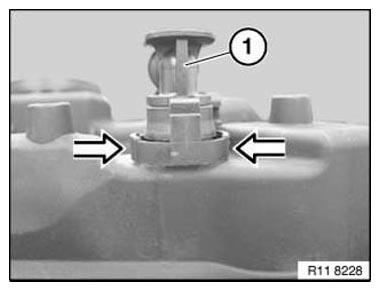

Press and hold down the unlocking device on the vacuum line (1) on the vacuum reservoir (cylinder head cover) in the direction of the arrow.

Detach vacuum line (1) in upward direction.

Fig 6: Pressing Vacuum Line Unlocking Device

Courtesy of BMW OF NORTH AMERICA, INC.

Detach vacuum line (2) in upward direction.

Fig 7: Identifying Air Intake Plenum Vacuum Line

Courtesy of BMW OF NORTH AMERICA, INC.

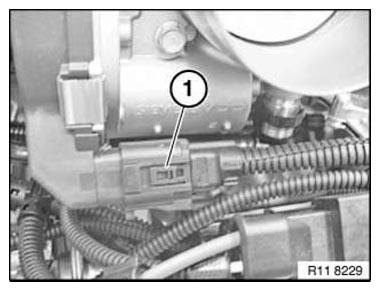

Disconnect plug connection (1) on throttle valve drive.

Fig 8: Identifying Throttle Valve Drive Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

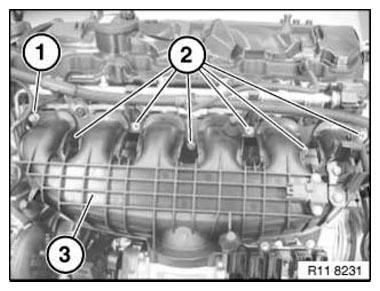

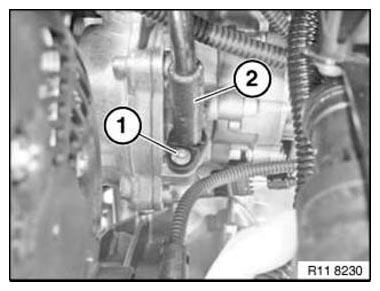

Release screw (1).

Tightening torque: 11 61 2AZ .

Unscrew nuts (2).

Tightening torque: 11 61 1AZ .

Fig 9: Identifying Air Intake Plenum Screw And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace all gaskets.

Assemble engine.
