51 41 000 Removing and installing (replacing) front left or right door trim panel
Special tools required:
Necessary preliminary tasks:

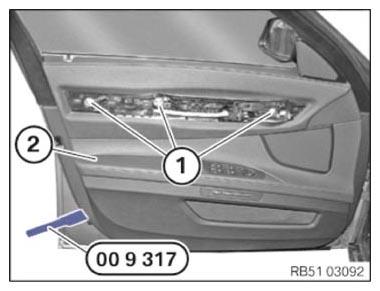

Release screws (1).
Tightening torque 51 41 1AZ .
Carefully lever out door trim panel (2) 00 9 317 with special tool.
Lift off door trim panel upwards.
NOTE:
Start lever out with the bottom.
Disengage Bowden cable (1) for release lever first at counter support (2) and then at door lock (3).
Disconnect all plug connections and remove door trim panel.
Installation note:
If applicable, replace clip (1).
If necessary, replace clip (2) with sealing ring.
Installation note:
After assembling the door trim panel proceed as follows:
- Open side window
- Lock with ignition key
- Check for ease of movement on locking button linkage
- If necessary, align linkage
Replacement:
- Remove switch for power windows on driver's side. See REPLACING POWER WINDOW SWITCH (DRIVER'S SIDE) .
- Remove LED for door opener at inside front, rear and front door trim panel light
- Remove FOOTWELL LIGHTING
- Remove SPEAKER TRIM FROM DOOR TRIM PANEL
- Remove INSIDE DOOR OPENER IN FRONT DOOR .
- Remove OPERATING FACILITY FOR SUPPLEMENTARY SEAT FUNCTIONS
