34 21 169 Removing and installing/replacing a brake anchor plate/brake guard plate at rear

Necessary preliminary tasks:

NOTE: Picture shows wheel hub removed. Wheel hub does not have to be removed.

Release screws (1).

Installation note:

Replace screws.

Tightening torque 34 21 3AZ .

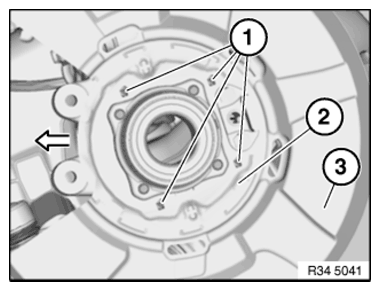

Fig 1: Removing Brake Anchor Retaining Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Remove retaining plate (2) in direction of arrow.

Feed out brake guard plate (3) over wheel hub.
