34 11 519 Removing and installing/replacing left or right front brake caliper
Necessary preliminary tasks:
- Remove WHEEL .
- Read and comply with GENERAL INFORMATION .
After completing repair work: BLEED BRAKE SYSTEM .
Press brake pedal down to floor and secure with pedal support.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

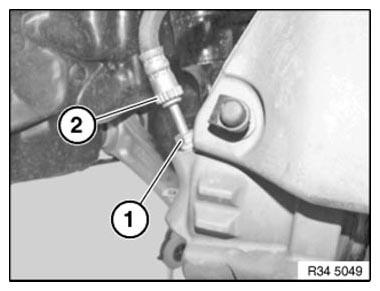

Release retaining screw (1).
Installation note:
Tightening torque 34 32 2AZ .
If necessary, grip at knurling (2).
If necessary, remove BRAKE PAD WEAR SENSOR .

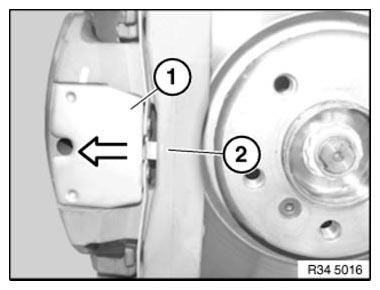

Lever out retaining spring (1) in direction of arrow towards rear.
Installation note:
Place retaining spring (1) first at top and bottom of brake caliper and then allow to engage in recess (2) of brake caliper housing.

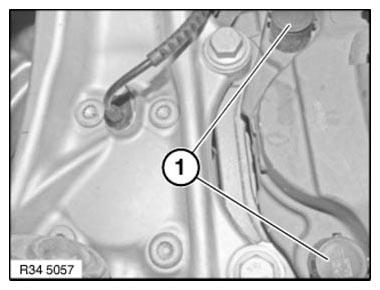

Remove plastic plugs (1).

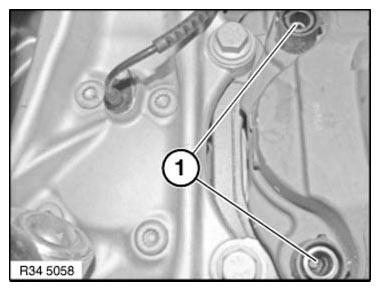

Unscrew guide bolts (1).
Withdraw brake caliper backwards.
Installation note:
Only clean guide bolts; do not grease.
Check thread.
Replace all guide screws which are not in perfect condition.
Tightening torque 34 11 4AZ .

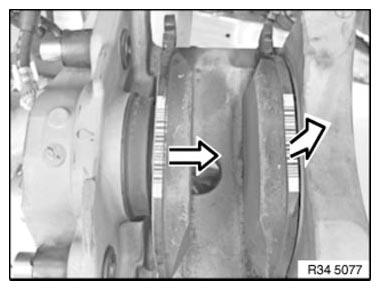

Remove brake pads in direction of arrow.
In the event of one-sided brake pad wear, do not change brake pads round.
If necessary, clean BRAKE CALIPER AND BRAKE PAD .
Equipment specification, high-speed brake system .

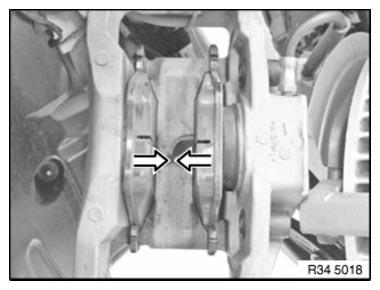

Remove brake pads in direction of arrow.
In the event of one-sided brake pad wear, do not change brake pads round.
If necessary, clean BRAKE CALIPER AND BRAKE PAD .
