34 52 121 Removing and installing/replacing ICM control unit

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD protection).

Necessary preliminary tasks:

Open ashtray cover (1).

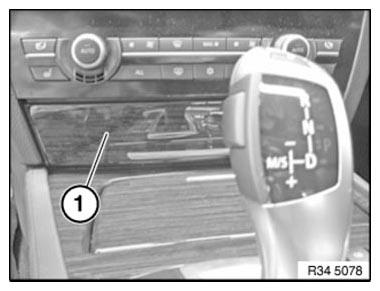

Fig 1: Identifying Ashtray Cover

Courtesy of BMW OF NORTH AMERICA, INC.

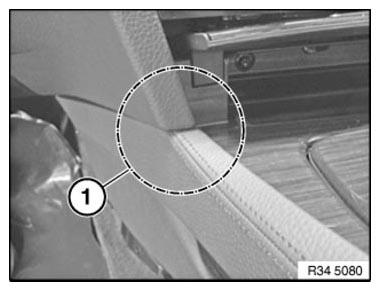

IMPORTANT: Risk of damage in area (1) of center console on left and right!

Fig 2: Identifying ICM Control Unit Damage Area

Courtesy of BMW OF NORTH AMERICA, INC.

Release left and right screws (1).

Installation:

Tightening torque 51 16 7AZ .

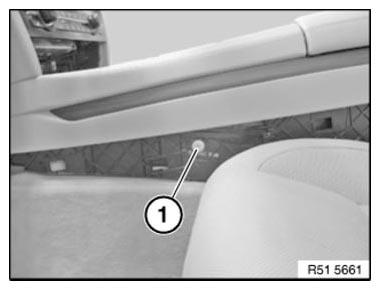

Fig 3: Identifying ICM Control Unit Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on center console carrier.

Installation:

Tightening torque 51 16 4AZ .

IMPORTANT: Risk of damage to center console (2)!

Observe the following instruction exactly.

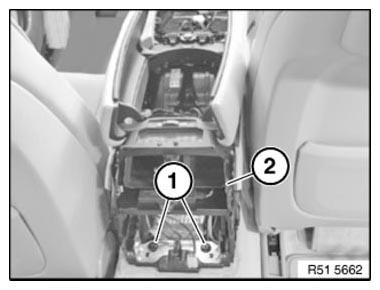

Fig 4: Identifying Center Console And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Raise center console (1) at rear (A) 7 cm.

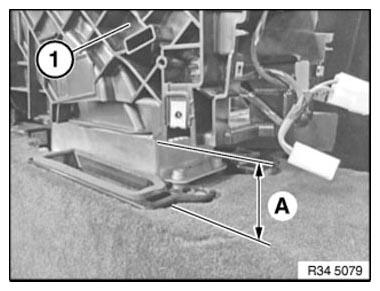

Fig 5: Raising Rear Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Picture shows center console removed.

Unfasten screws (2).

Installation:

Replace screws.

Tightening torque 34 51 2AZ .

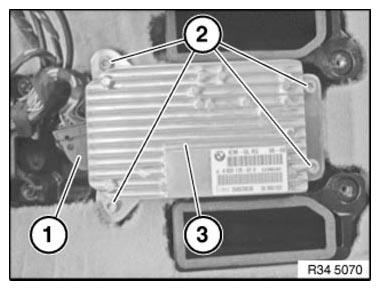

Fig 6: Identifying ICM Control Unit, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Swing out ICM control unit (3).

Disconnect plug connection (1).

IMPORTANT: Do not trap any electrical leads when installing ICM control unit!

After removing and installing ICM control unit:

After completing tasks, use BMW Diagnosis and Information System to

Replacement:

After completing tasks, use BMW Diagnosis and Information System to

Carry out programming/encoding
Carry out RIDE-HEIGHT CALIBRATION
Carry out ADJUSTMENT/START-UP OF ICM CONTROL UNIT
Active front steering only: carry out ADJUSTMENT/INITIAL OPERATION of active front steering
