34 33 200 Removing and installing/replacing electric vacuum pump

WARNING: High-voltage system - danger to life!

The following points must be strictly observed prior to starting work :

Necessary preliminary work:

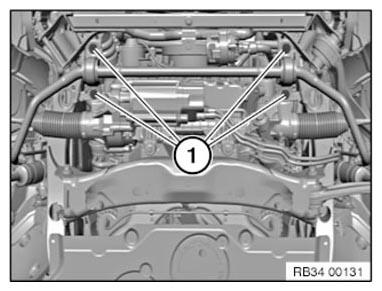

Release screws (1) from anti-roll bar.

Installation note:

Replace screws.

Tightening torque 31 35 1AZ .

Fig 1: Identifying Anti Roll Bar Screws

Courtesy of BMW OF NORTH AMERICA, INC.

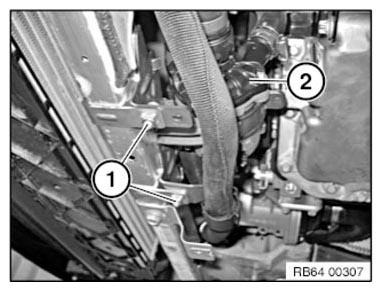

Release screws (1) from auxiliary water pump holder.

Tightening torque 11 51 5AZ .

Secure auxiliary water pump (2) in sideways direction.

Installation note:

Make sure holders of auxiliary water pump (2) to retaining bracket are correctly seated.

Fig 2: Identifying Auxiliary Water Pump And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

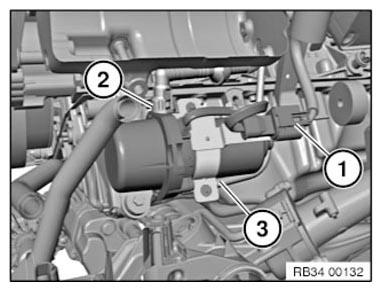

Unlock plug connection (1) and disconnect.

Unlock and detach vacuum line (2).

Detach vent hose (3).

Installation note:

To facilitate installation, coat vent hose (3) with lubricant.

Fig 3: Identifying Electric Vacuum Pump Plug Connection, Vacuum Line And Vent Hose

Courtesy of BMW OF NORTH AMERICA, INC.

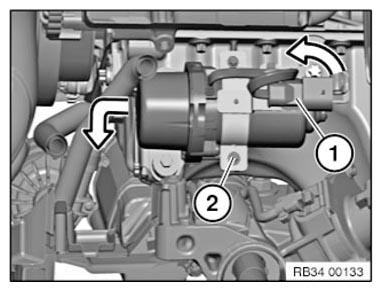

Turn connector (1) in direction of arrow and pull off from holder for electric vacuum pump.

Release screw (2).

Tightening torque 34 33 3AZ .

Feed electric vacuum pump out forwards.

Fig 4: Removing Electric Vacuum Pump Holder

Courtesy of BMW OF NORTH AMERICA, INC.
