62 30... Notes on head-up display
NOTE:
A special windscreen must be fitted to ensure that the Head-Up Display image can be projected correctly.
This windscreen comprises three sections. An outer and an inner glass pane are connected by a wedge-shaped plastic film.
The wedge shape prevents double projection of the Head-Up Display.
When the windscreen is replaced, the vehicle identification number must be checked to ascertain whether the windscreen in question is suitable for HUD.

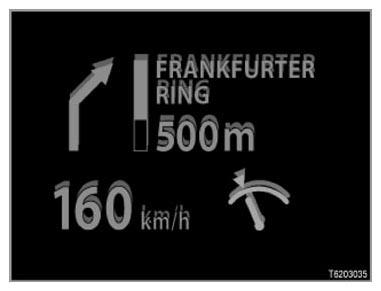

Example of the display with a conventional windscreen:
With a conventional windscreen, the projected image is reflected on the inner and outer glass pane, producing a double image.
NOTE:

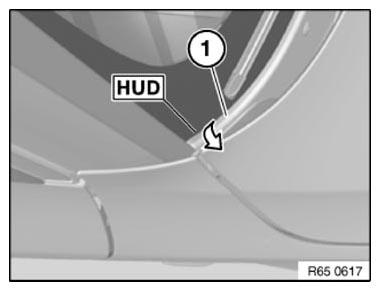

Windscreens for Head-Up Display, for vehicles with model year up to 2012, are marked with the letters "HUD" on the outside at the bottom right below the seal (1).
