62 30 005 Removing and installing/replacing trim for Head-Up Display

Special tools required:

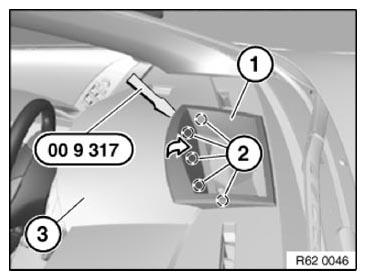

Lever out trim for Head-Up Display (1) with special tool 00 9 317 at mounting points (2).

Feed cover for head-up display (1) in direction of arrow out of instrument panel trim (3) and remove.

Fig 1: Removing Head-Up Display Cover Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

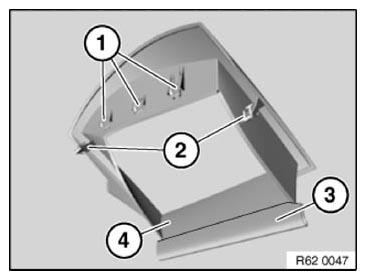

Make sure retaining lugs (1) and (2) and sleeve (3) of cover for Head-Up Display (4) are correctly seated.

Fig 2: Identifying Retaining Lugs, Sleeve Of Cover And Head-Up Display

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Only on F06, F12, F13:

Installation note:

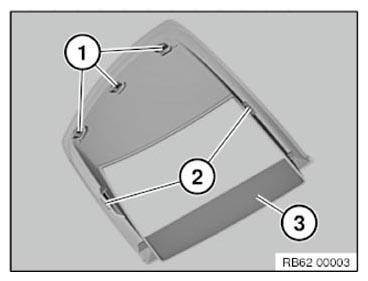

Make sure retaining lugs (1) and (2) are correctly seated on cover for Head-Up Display (3).

Fig 3: Identifying Head-Up Display Cover And Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
