12 63 586 Replacing power distribution module (N55 Hybrid)

WARNING: High-voltage system - danger to life!
The following points must be strictly observed prior to starting work:

Necessary preliminary work:

Release expanding rivets (1) and remove cover (2).

Installation note:

Replace damaged expanding rivets.

Holder of cover (2) must snap into place in suspension cross-brace during installation.

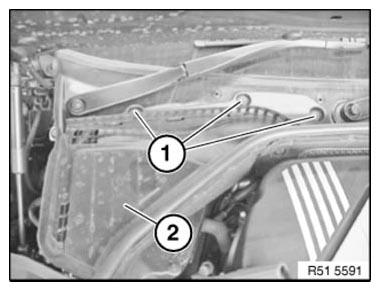

Fig 1: Identifying Power Distribution Module Expanding Rivets And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover (2).

Release nut beneath it and set positive battery cable aside.

Unlock and pull off all connectors from power distribution module.

Release lock (3) in direction of arrow.

Feed out and remove power distribution module.

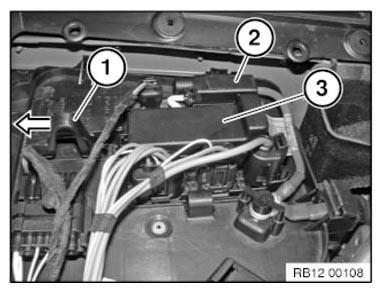

Fig 2: Removing Power Distribution Module Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Reassemble the vehicle.
