12 14 524 Replacing pulse sensor on exhaust camshaft (N55 Hybrid)
WARNING:
High-voltage system - danger to life!
The following points must be strictly observed prior to starting work:
The following points must be strictly observed prior to starting work:
- Observe SAFETY INFORMATION for handling hybrid cars
IMPORTANT:
Aluminum screws/bolts must be replaced each time they are released
.
Aluminum screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Jointing torque and angle of rotation must be observed without fail (risk of damage) .
Aluminum screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Jointing torque and angle of rotation must be observed without fail (risk of damage) .
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION)
.
Necessary preliminary tasks:
- Read out the fault memory of the DME control unit.
- Switch off ignition.
- Remove FAN COWL .

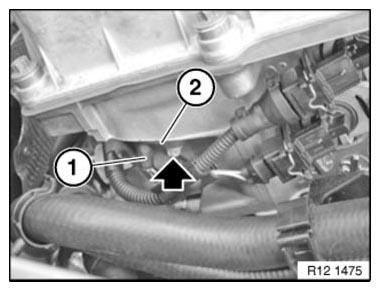

Unlock connector (1) and remove.
Release screw.
Tightening torque 13 62 1AZ .
Remove pulse sensor (2).
NOTE:
Check stored fault message.
Delete fault memory.
