12 31 022 Removing and installing or replacing starter motor generator (N55 Hybrid)
WARNING:
High-voltage system - danger to life!
The following points must be strictly observed prior to starting work:
The following points must be strictly observed prior to starting work:
- De-energize the HIGH-VOLTAGE SYSTEM .
- Observe SAFETY INFORMATION for handling hybrid cars.
Necessary preliminary work:
- Switch off ignition.
- Disconnect BATTERY EARTH LEAD and cover.
- Disconnect BATTERY EARTH LEAD of auxiliary battery and cover.
- Remove DRIVE BELT for starter motor generator.
- Remove ELECTRIC A/C COMPRESSOR .

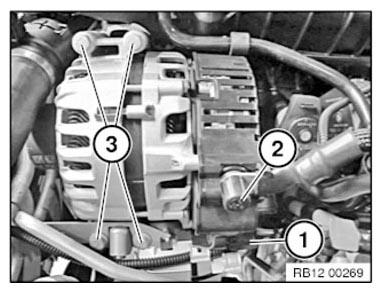

Unlock connector (1) and remove.
Remove protective cap (2) and release nut underneath.
Tightening torque 12 42 1AZ .
Remove battery positive lead.
Release screws (3).
Tightening torque 12 31 1AZ .

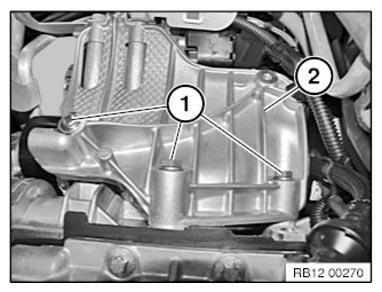

Release screws (1) a few turns until holder (2) for air conditioning compressor is loose. Do not remove bracket (2).
Tightening torque 12 31 3AZ .
Feed out and remove starter motor generator.
Assemble engine.
