23 12 061 Replacing the output flange radial shaft seal (GS6-45BZ/DZ), all-wheel drive

WARNING: This page does not describe the selected car, but rather 24 other vehicles, including the 2018 BMW 320i xDrive, 2018 BMW 320i, 2017 BMW 320i xDrive, 2017 BMW 320i, and 2016 BMW 335i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

23 0 490
24 0 110
11 8 180
2 286 572
23 3 211
23 3 210
23 3 230

IMPORTANT: After completion of work, check TRANSMISSION OIL LEVEL .
Use only approved transmission oil.
Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary tasks:

Remove TRANSFER BOX
Engage gear

Removal:

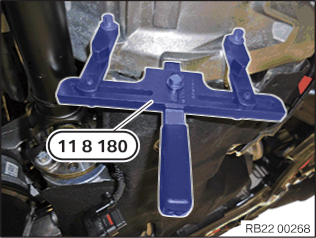

Block crankshaft with special tool 11 8 180.

Fig 1: Block crankshaft with special tool 11 8 180

Courtesy of BMW OF NORTH AMERICA, INC.

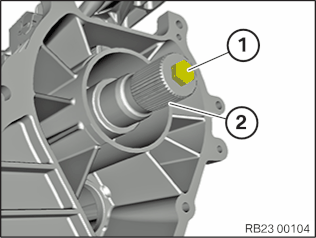

Loosen and screw out screw (1) from the adapter shaft of the transmission (2).

Fig 2: Screw & Adapter Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Mount special tool 2 286 572 C and 2 286 572 D on the adapter shaft.

Fig 3: Communication System Wiring Diagram (D)

Courtesy of BMW OF NORTH AMERICA, INC.

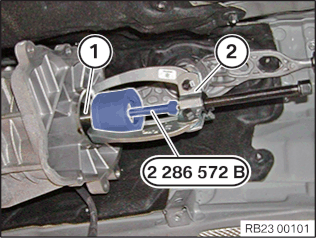

Screw in special tool 2 286 572 B in adapter shaft (1). Pull out adapter shaft (1) using a two or three-claw extractor tool (2).

Fig 4: Special Tool & Adapter Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

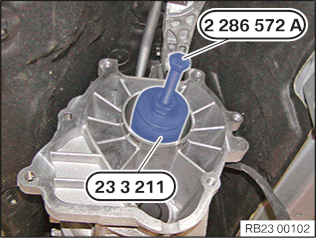

Mount screw 2 286 572 A on special tool 23 3 211.

NOTE: Special tool 23 3 211 is an element of special tool 23 3 210.

Unscrew screw 2 286 572 A as far as possible out of special tool 23 3 211.

Screw special tool 23 3 211 tightly into radial shaft seal.

Screw in screw 2 286 572 A into special tool 23 3 211 again until the radial shaft seal is drawn out of the transmission housing.

If necessary, repeat procedure.

Installation:

Coat sealing lips of new radial shaft seal with transmission oil.

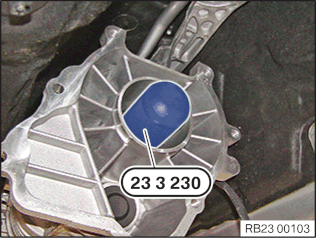

Drive in radial shaft seal with special tool 23 3 230 until flush.

Fig 5: Radial Shaft Seal & Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

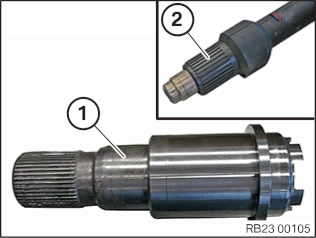

Heat up adapter shaft (1) using a hot air blower (2).

NOTE: Maximum temperature of the adapter shaft: 120°C.

Fig 6: Adapter Shaft & Hot Air Blower

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of burning! Wear protective gloves

Insert the heated adapter shaft (2) on the output.

If necessary, carefully hammer in the adapter shaft using a plastic hammer.

Part: Replace screw (1).

Tighten screw (1).

Tightening torque 23 21 3AZ .

Fig 7: Heated Adapter Shaft & Replace Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 8 180.

Fig 8: Remove special tool 11 8 180

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install transfer box.
Check transmission oil level.
