12 61 280 Removing and installing/replacing oil pressure sensor (N74)

Only perform this task on an engine that has cooled down.

Necessary preliminary tasks:

• Turn off ignition
• Remove rear UNDERBODY PROTECTION

Installation location: Oil pressure sensor is located above the oil filter housing.

Engine oil may emerge when oil pressure sensor is replaced; have a cleaning cloth ready.

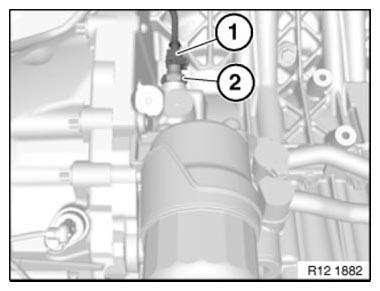

Unlock plug (1) and remove.

Release and remove oil pressure sensor (2).

Tightening torque: see 1AZ in 12 61 ENGINE OIL PRESSURE, OIL CONDITION DISPLAY .

Installation:

Check engine oil level. Top up engine oil if level is too low.

Reassemble the vehicle.
