17 11 000 Removing and installing radiator (N20, N26)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of scalding!
Only perform this repair work after engine has cooled down.

IMPORTANT: Wear safety goggles and protective gloves.

Necessary preliminary tasks:

Follow instructions for REPAIR WORK ON THE COOLING SYSTEM .
Remove FAN COWL .
Drain COOLANT .

Only vehicles with automatic transmissions:

Unlock and detach coolant hose (1) from transmission oil cooler on the radiator.

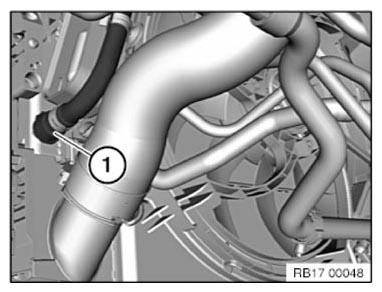

Fig 1: Identifying Radiator Transmission Oil Cooler Coolant Hose

G10103011

Courtesy of BMW OF NORTH AMERICA, INC.

Release and disconnect coolant hoses (1).

Unfasten screws (2).

Tightening torque 17 10 2AZ .

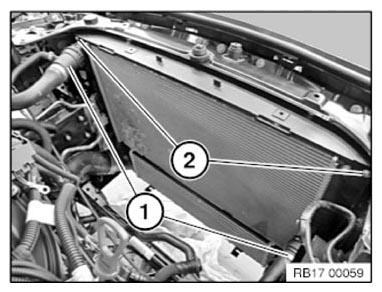

Fig 2: Identifying Coolant Hoses And Screws

G10103012

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover (1) from the radiator.

Carefully feed out radiator (2) towards top and remove.

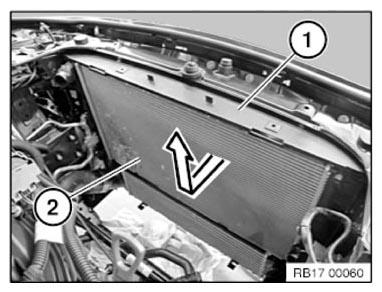

Fig 3: Removing Radiator

G10103013

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure the installation position of the cover (1) on the left and right module carriers (2) is correct!

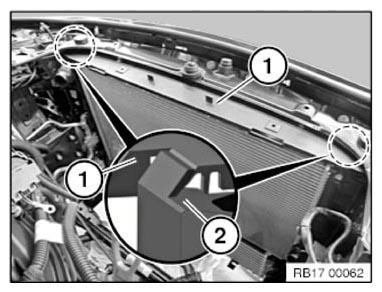

Fig 4: Identifying Left And Right Module Carriers Cover

G10103014

Courtesy of BMW OF NORTH AMERICA, INC.

Reassemble the vehicle.

CHECK COOLING SYSTEM FOR LEAKS .
