62 30 010 Removing and installing/renewing head-up display

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD PROTECTION) .

IMPORTANT: Comply with notes and notes on HANDLING OPTICAL FIBRES .
Risk of damage!
Do not scratch lens of head-up display.

Necessary preliminary tasks:

Remove INSTRUMENT PANEL TRIM

NOTE: Similar to graphic.

Remove seal (1) from head-up display (2).

Release screws (3).

Tightening torque 62 30 1AZ .

Carefully feed out head-up display (2) in upward direction.

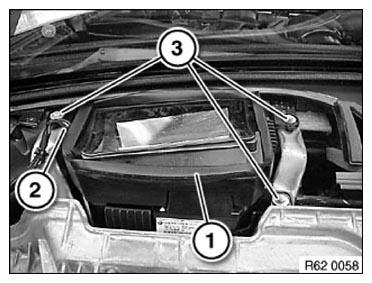

Fig 1: Identifying Head-Up Display, Seal And Screw

G10098677

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) on underside of head-up display (2) and disconnect.

Remove head-up display (2).

Installation note:

Clean lens of head-up display.

Adjust HEAD-UP DISPLAY .

Fig 2: Identifying Head-Up Display Plug Connection

G10098678

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .

NOTE: When replacinghead-up display on vehicles with production date up to 07/2013 the instrument cluster must be flash programmed.
