62 30 005 Removing and installing/replacing trim for Head-Up Display

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Release cover for head-up display (1) with special tool 00 9 325 at marked area from retaining clips.

Feed cover for head-up display (1) in direction of arrow out of instrument panel trim and remove.

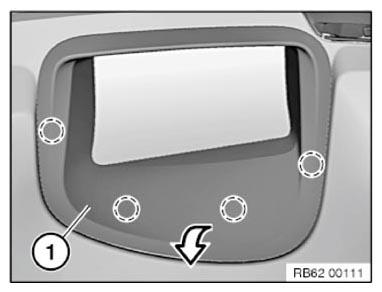

Fig 1: Removing Head-Up Display Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining clips (1) must not be missing or damaged.

Make sure cover for head-up display (2) is correctly seated on instrument panel trim.

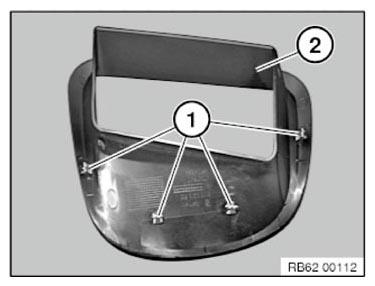

Fig 2: Identifying Head-Up Display Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.
