52 26 388 Removing and installing/replacing rear middle head restraint

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

If applicable, fold back head restraint (1) and move upwards to max. extent.

Press lock (2) and pull upwards and out head restraint (1).

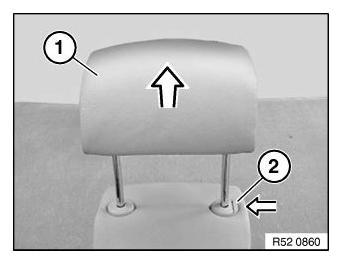

Fig 1: Removing Head Restraint

Courtesy of BMW OF NORTH AMERICA, INC.
