52 26 202 Removing and installing/replacing rear panel on rear center seat backrest

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Unclip trim cover for lock with a plastic wedge.

Move trim cover for lock a little towards the middle.

Detach trim cover for lock by pulling towards rear.

Fig 1: Removing Trim Cover For Lock With Plastic Wedge

G09949057

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs on the trim cover for the lock must not be damaged.

Replace defective trim cover for lock.

Fig 2: Retaining Lugs Installation Position

G09949058

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Welt of backrest cover is partially positioned below the center armrest cover.

Carefully lift out the center armrest cover in the marked area (1).

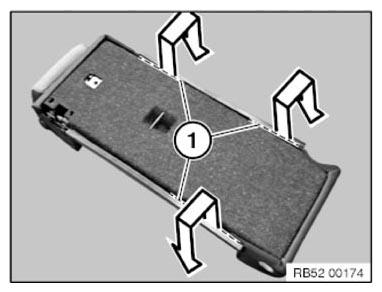

Fig 3: Lifting Out Center Armrest Cover

G10097978

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out welt in marked area.

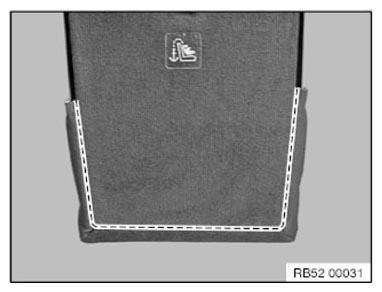

Fig 4: Welt Marked Area

G09949061

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out welt in marked area.

Detach rear panel.

Installation note:

Insert the rear panel in the backrest frame first.

Insert welt of backrest cover in frame.

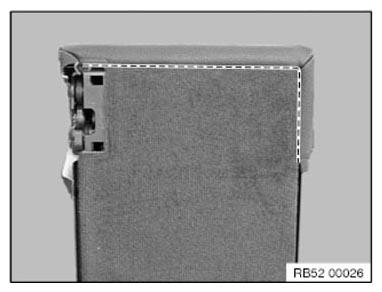

Fig 5: Welt Marked Area

G09949062

Courtesy of BMW OF NORTH AMERICA, INC.
