52 26 200 Removing and installing/replacing rear panel on right rear seat backrest
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

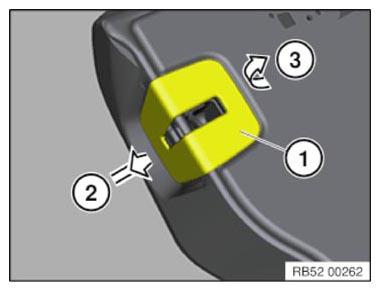

Unclip lock finisher (1) in direction of arrow (2) starting with backrest side section.
Remove lock finisher (1) in direction of arrow (3).
Installation note:

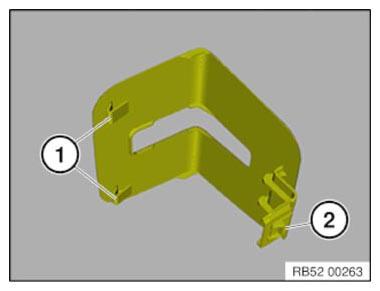

Retaining lugs (1) and (2) of cover must not be damaged.
Replace faulty cover.
Release screw (1).
Remove lashing eye (2) from backrest.
Tightening torque: 52 26 05AZ .

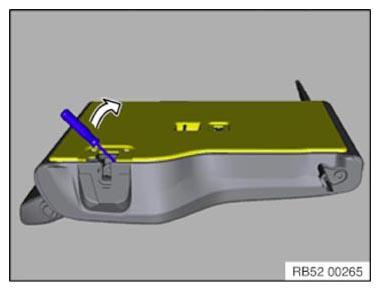

Lever backrest cover all round out of backrest frame.
Remove rear panel from backrest.
Installation note:
Insert the rear panel in the backrest frame first.
Press the welt from the backrest cover into the frame.
