52 15 062 Replacing backrest width adjustment with valve on left or right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove the REAR PANEL FROM THE FRONT SEAT
Fully drain air cushion

Unfasten plug connection (1) and disconnect.

Unlock quick connector (2) and pull off air hose from adapter.

Installation note:

Connections are coded against incorrect assembly.

Air hoses must not be kinked.

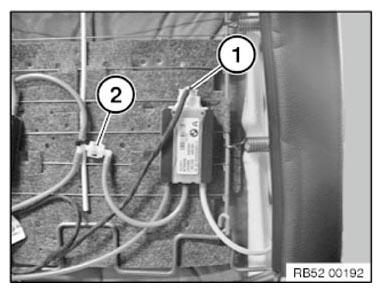

Fig 1: Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip valve (1) towards top from spring wire.

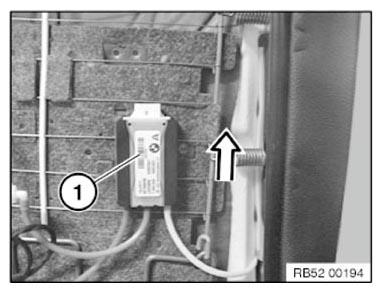

Fig 2: Removing Valve From Spring Wire

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Removal operation is shown on left side, right analogous to that.

Air cushion (2) must be fully drained.

Detach spring (1) top and bottom.

Lever out clips.

Feed out air cushion (2) between spring wire and backrest frame.

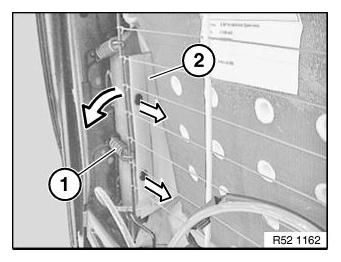

Fig 3: Removing Spring And Air Cushion

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace faulty clips.

Insert the air cushion without kinks.

Check air cushion for damage.

NOTE: Run a function check.
