52 13... Replacing guide sleeves for front left or right head restraint

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT HEAD RESTRAINT

NOTE: Shown here without backrest cover for a better overview.

Push the backrest cover with upholstery down next to the guide sleeve.

Carefully insert screwdriver between the backrest cover and guide sleeve.

Unlock the retaining lug with a screwdriver and remove the guide sleeves through the top.

Fig 1: Guide Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Install guide sleeves as follows:

Guide sleeve with pushbutton (3) in direction of travel left
Guide sleeve without pushbutton in direction of travel right

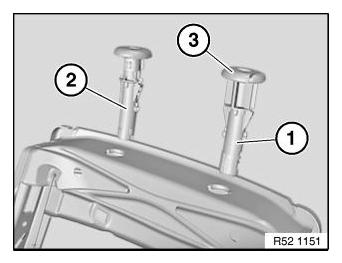

Fig 2: Guide Sleeve With Pushbutton
Courtesy of BMW OF NORTH AMERICA, INC.
