65 13 062 Removing and installing/replacing speaker (tweeter, in dashboard)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 327

Unclip trim (1) with special tool 00 9 327 from latch mechanisms and remove upwards.

Fig 1: Removing Trim Using Special Tool (00 9 327)

G10099031

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs and clamps at marked points must not be damaged.

Fig 2: Locating Retaining Lugs

G10099032

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 65 13 06AZ .

Pull out mid-range speaker (2) upwards from dashboard (3).

Fig 3: Identifying Mid-Range Speaker Screws

G10099033

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (2) at mid-range speaker (3).

Release screws (5) on tweeter (4).

Pull out tweeter (4) upwards from dashboard (1).

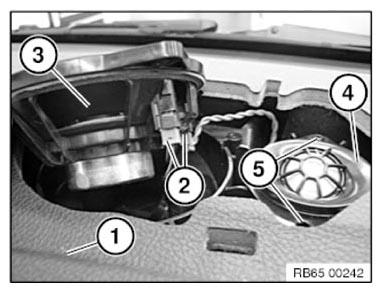

Fig 4: Identifying Midrange Speaker Plug Connections And Tweeter Screws

G10099040
